مشخصات دیتاشیت

نام دیتاشیت FAN7380
حجم فایل 661.601 کیلوبایت
نوع فایل pdf
تعداد صفحات 12

دانلود دیتاشیت FAN7380

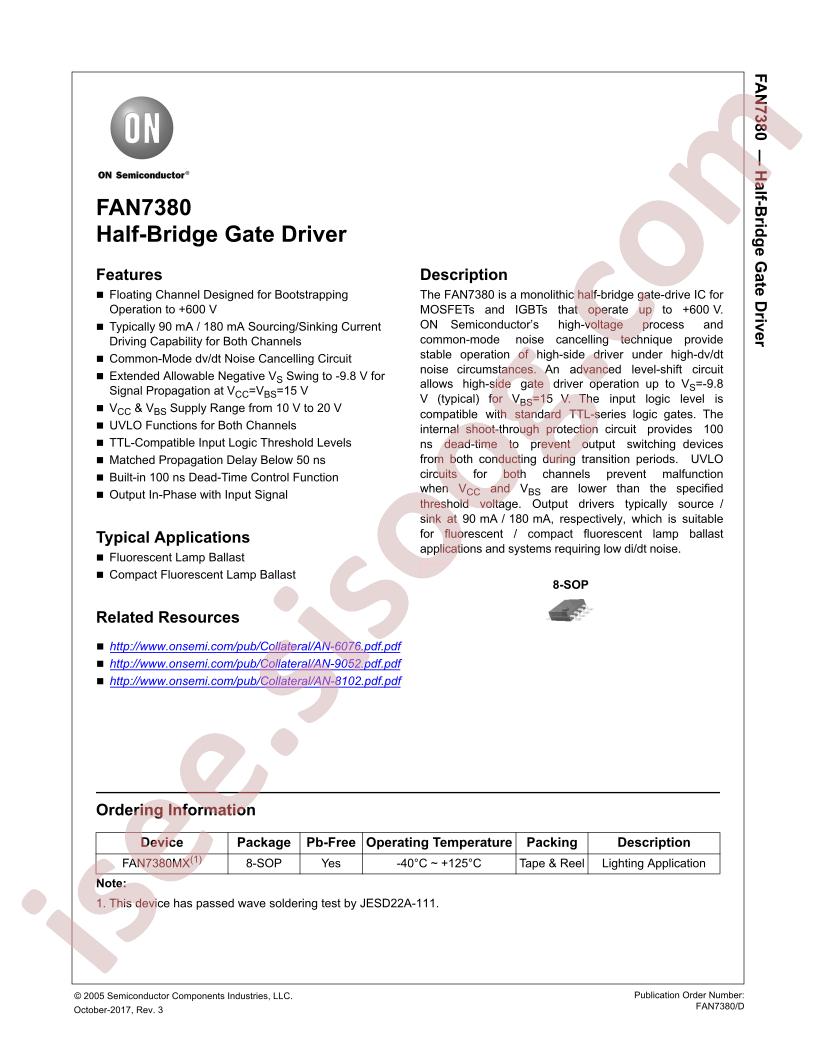

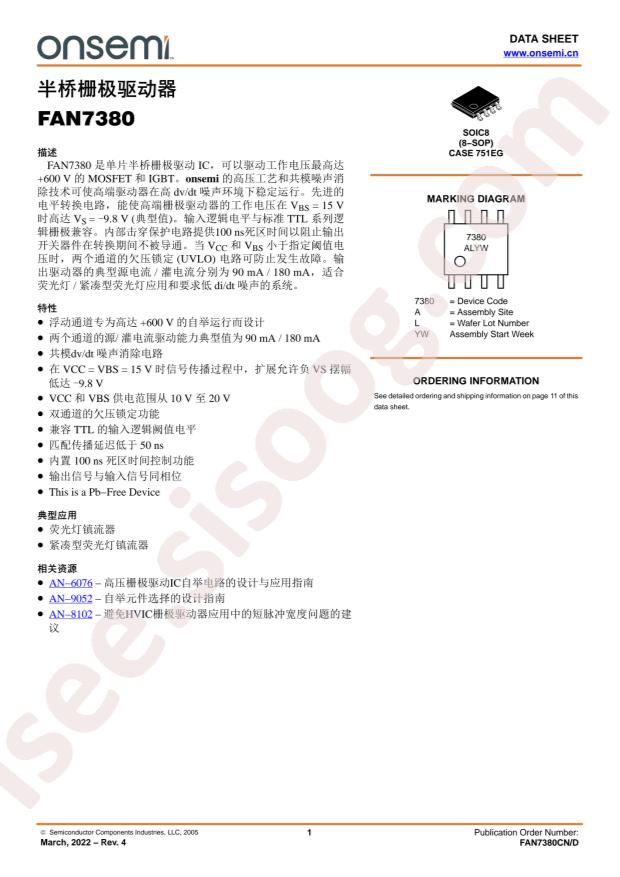

FAN7380 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: onsemi FAN7380MX
  • Fall Time: 90ns
  • Load Type: IGBT;MOSFET
  • Rise Time: 230ns
  • Supply Voltage: 10V~20V
  • Number of Drivers: 2
  • Driven Configuration: Half Bridge
  • Operating Temperature: -40°C~+150°C@(Tj)
  • Peak Output Current(sink): 180mA
  • Peak Output Current(source): 90mA
  • Package: SOP-8
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Channel Type: Independent
  • Gate Type: IGBT, N-Channel MOSFET
  • Voltage - Supply: 10V ~ 20V
  • Logic Voltage - VIL, VIH: 0.8V, 2.5V
  • Current - Peak Output (Source, Sink): 90mA, 180mA
  • Input Type: Non-Inverting
  • High Side Voltage - Max (Bootstrap): 600V
  • Rise / Fall Time (Typ): 230ns, 90ns
  • Mounting Type: Surface Mount
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SOIC
  • Base Part Number: FAN7380
  • detail: Half-Bridge Gate Driver IC Non-Inverting 8-SOIC
