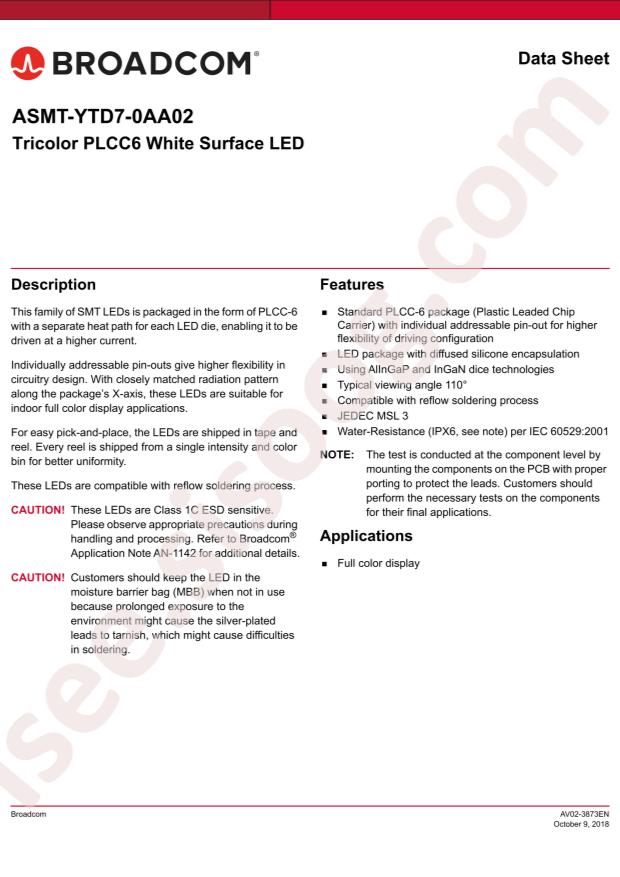

دیتاشیت ASMT-YTD7-0AA02
مشخصات دیتاشیت
نام دیتاشیت | ASMT-YTD7-0AA02 |
---|---|
حجم فایل | 1139.903 کیلوبایت |
نوع فایل | |
تعداد صفحات | 15 |
دانلود دیتاشیت ASMT-YTD7-0AA02 |
ASMT-YTD7-0AA02 Datasheet |
---|
مشخصات
- Manufacturer: Broadcom Limited
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Color: Red, Green, Blue (RGB)
- Configuration: Independent
- Lens Color: -
- Lens Transparency: Diffused
- Millicandela Rating: 650mcd Red, 1900mcd Green, 384mcd Blue
- Lens Style: Square with Flat Top
- Lens Size: 2.30mm
- Voltage - Forward (Vf) (Typ): 2.1V Red, 3.1V Green, 3.1V Blue
- Current - Test: 20mA Red, 20mA Green, 20mA Blue
- Viewing Angle: 120°
- Mounting Type: Surface Mount
- Wavelength - Dominant: 623nm Red, 529nm Green, 469nm Blue
- Wavelength - Peak: 630nm Red, 522nm Green, 465nm Blue
- Features: -
- Package / Case: 6-SMD, J-Lead
- Supplier Device Package: 6-PLCC
- Size / Dimension: 3.00mm L x 2.80mm W
- Height (Max): 2.00mm
- Base Part Number: ASMT-YT
- detail: Red, Green, Blue (RGB) 623nm Red, 529nm Green, 469nm Blue LED Indication - Discrete 2.1V Red, 3.1V Green, 3.1V Blue 6-SMD, J-Lead
