NCV8403ASTT1G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NCV8403ASTT1G
|
|
حجم فایل
|
74.573
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
12
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:

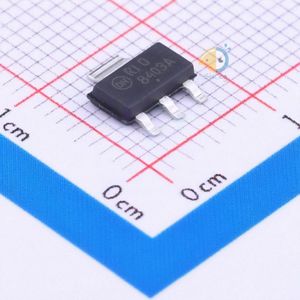

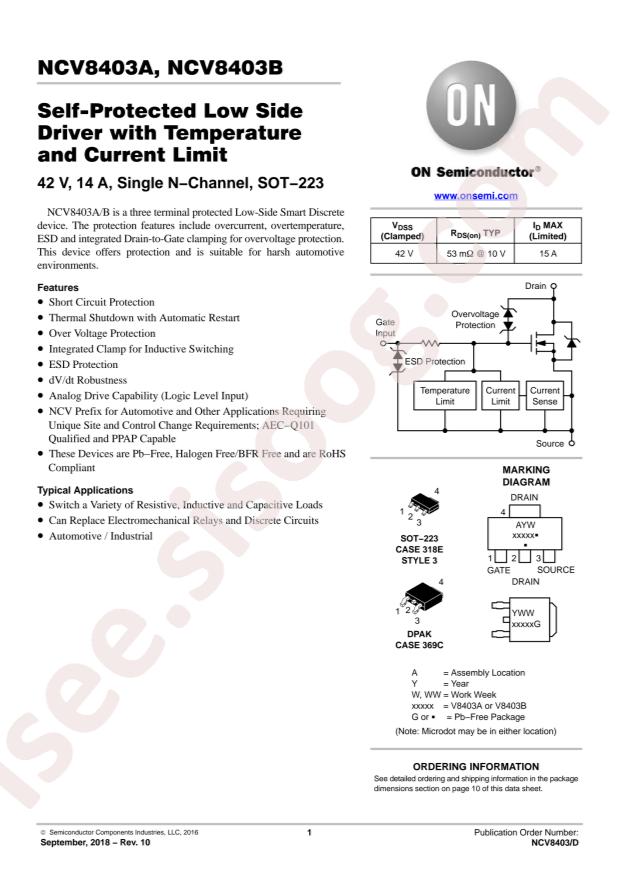

onsemi NCV8403ASTT1G
-
Operating Temperature:
-40°C~+150°C@(Tj)
-
Power Dissipation (Pd):
1.56W
-
Drain Source Voltage (Vdss):
42V
-
Continuous Drain Current (Id):
15A
-
Gate Threshold Voltage (Vgs(th)@Id):
2.2V@1.2mA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
68mΩ@10V,3A
-
Package:
SOT-223
-
Manufacturer:
onsemi
-
Series:
Automotive, AEC-Q101
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Switch Type:
General Purpose
-
Number of Outputs:
1
-
Ratio - Input:Output:
1:1
-
Output Configuration:
Low Side
-
Output Type:
N-Channel
-
Interface:
On/Off
-
Voltage - Load:
42V (Max)
-
Voltage - Supply (Vcc/Vdd):
Not Required
-
Current - Output (Max):
14A
-
Rds On (Typ):
53mOhm
-
Input Type:
Non-Inverting
-
Features:
Auto Restart
-
Fault Protection:
Current Limiting (Fixed), Over Temperature, Over Voltage
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
SOT-223
-
Package / Case:
TO-261-4, TO-261AA
-
Base Part Number:
NCV8403
-
detail:
Power Switch/Driver 1:1 N-Channel 14A SOT-223
