دیتاشیت LP2950ACZ-3.0G

LP2950, LP2951, NCV2951

مشخصات دیتاشیت

نام دیتاشیت LP2950, LP2951, NCV2951
حجم فایل 261.673 کیلوبایت
نوع فایل pdf
تعداد صفحات 22

دانلود دیتاشیت LP2950, LP2951, NCV2951

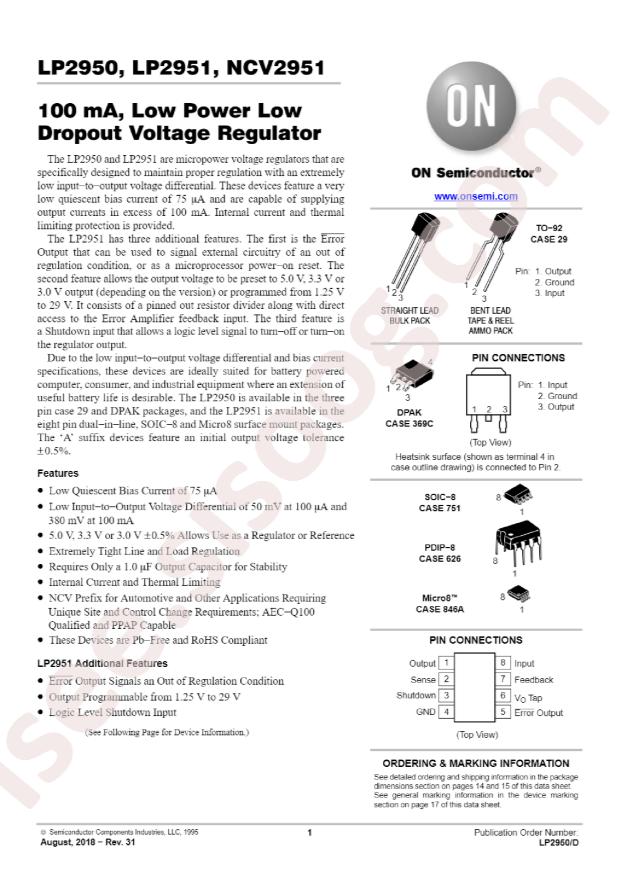

LP2950, LP2951, NCV2951 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: onsemi LP2950ACZ-3.0G
  • Output Current: 100mA
  • Output Voltage: 3V
  • Dropout Voltage: 0.45V@(100mA)
  • Output Polarity: positive
  • Number of Outputs: 1
  • Maximum Input Voltage: 35V
  • Operating Temperature: -40°C~+125°C
  • Quiescent Current (Ground Current): 120uA
  • Package: TO-92-3
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Tube
  • Part Status: Obsolete
  • Output Configuration: Positive
  • Output Type: Fixed
  • Number of Regulators: 1
  • Voltage - Input (Max): 30V
  • Voltage - Output (Min/Fixed): 3V
  • Voltage - Output (Max): -
  • Voltage Dropout (Max): 0.45V @ 100mA
  • Current - Output: 100mA
  • Current - Quiescent (Iq): 120µA
  • Current - Supply (Max): 12mA
  • PSRR: -
  • Control Features: -
  • Protection Features: Over Current, Over Temperature
  • Mounting Type: Through Hole
  • Package / Case: TO-226-3, TO-92-3 (TO-226AA)
  • Supplier Device Package: TO-92-3
  • Base Part Number: LP295
  • detail: Linear Voltage Regulator IC 1 Output 100mA TO-92-3
