دیتاشیت LM317BTG
مشخصات دیتاشیت
| نام دیتاشیت | LM317, NCV317 Datasheet |
|---|---|
| حجم فایل | 299.326 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 13 |
دانلود دیتاشیت LM317, NCV317 Datasheet |

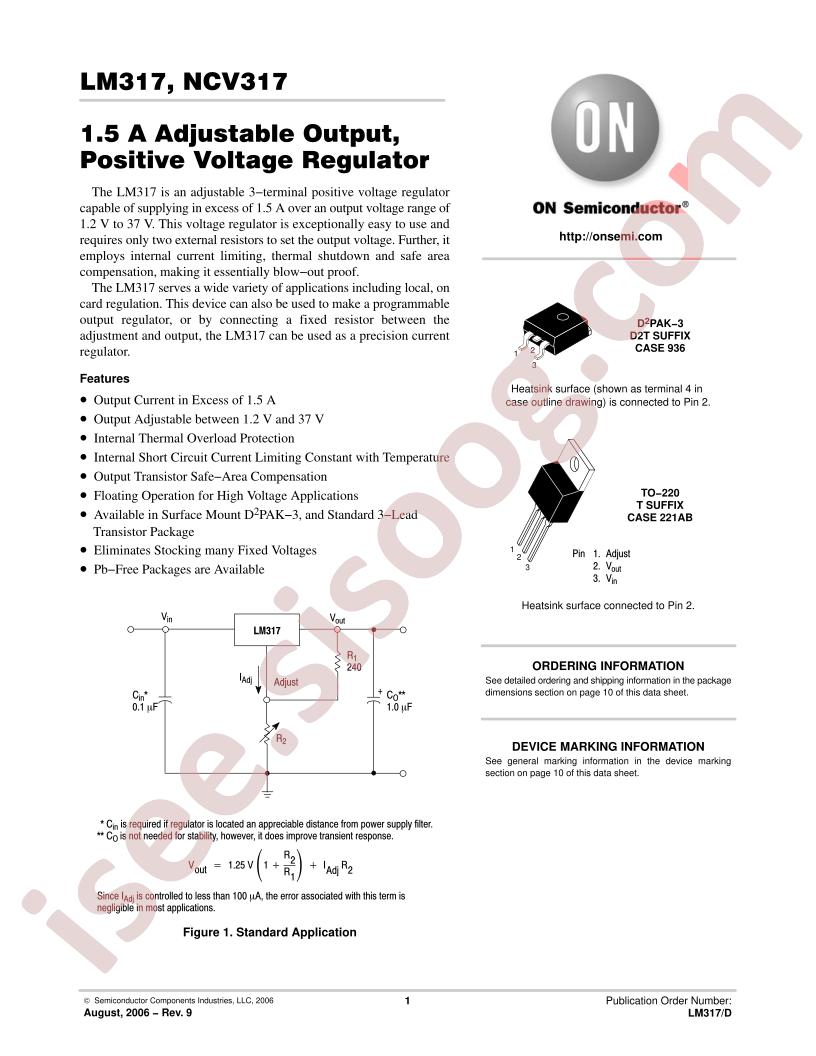

LM317, NCV317 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: onsemi LM317BTG
- Output Type: Adjustable
- Output Current: 1.5A
- Output Voltage: 1.2V~37V
- Dropout Voltage: -
- Output Polarity: Positive
- Number of Outputs: 1
- Maximum Input Voltage: 40V
- Operating Temperature: -40°C~+125°C
- Quiescent Current (Ground Current): 10mA
- Power Supply Rejection Ratio (PSRR): 80dB@(120Hz)
- Package: TO-220
- Manufacturer: onsemi
- Series: -
- Packaging: Tube
- Part Status: Active
- Output Configuration: Positive
- Number of Regulators: 1
- Voltage - Input (Max): 40V
- Voltage - Output (Min/Fixed): 1.2V
- Voltage - Output (Max): 37V
- Voltage Dropout (Max): -
- Current - Output: 1.5A
- Current - Quiescent (Iq): 10mA
- PSRR: 80dB ~ 65dB (120Hz)
- Control Features: -
- Protection Features: Over Current, Over Temperature
- Mounting Type: Through Hole
- Package / Case: TO-220-3
- Supplier Device Package: TO-220AB
- Base Part Number: LM317
- detail: Linear Voltage Regulator IC 1 Output 1.5A TO-220AB
