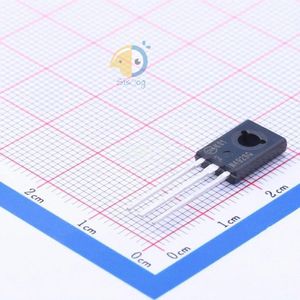

2N4923G دیتاشیت

2N4923G

مشخصات دیتاشیت

نام دیتاشیت 2N4923G
حجم فایل 86.317 کیلوبایت
نوع فایل pdf
تعداد صفحات 7

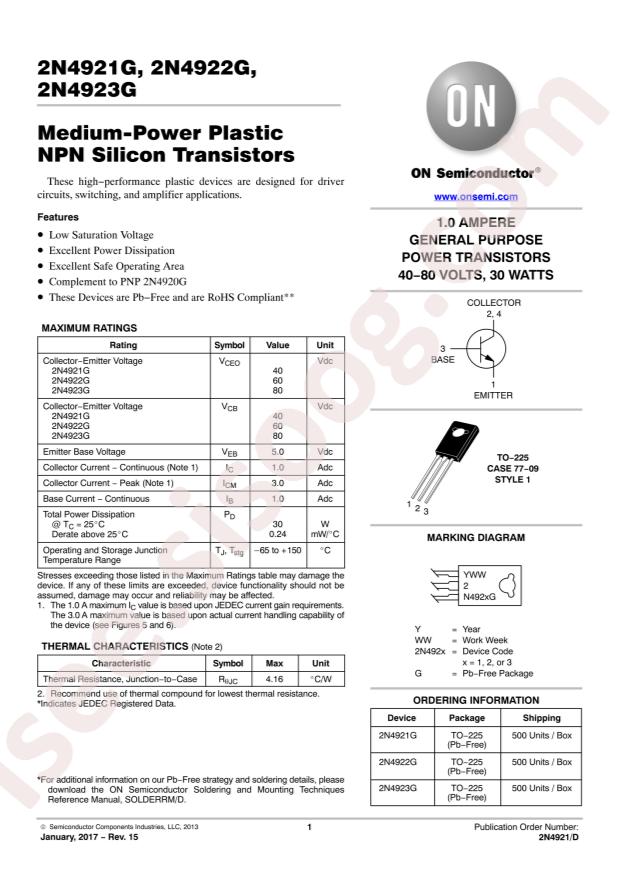

دانلود دیتاشیت 2N4923G

دانلود دیتاشیت

سایر مستندات

2N4921-4923 6 pages

مشخصات فنی

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
  • Datasheet: onsemi 2N4923G
  • Transistor Type: NPN
  • Operating Temperature: -65°C~+150°C@(Tj)
  • Collector Current (Ic): 1A
  • Power Dissipation (Pd): 30W
  • Transition Frequency (fT): 3MHz
  • DC Current Gain (hFE@Ic,Vce): 30@500mA,1V
  • Collector Cut-Off Current (Icbo): 500uA
  • Collector-Emitter Breakdown Voltage (Vceo): 80V
  • Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 600mV@1A,100mA
  • Package: TO-225
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Bulk
  • Part Status: Obsolete
  • Current - Collector (Ic) (Max): 1A
  • Voltage - Collector Emitter Breakdown (Max): 80V
  • Vce Saturation (Max) @ Ib, Ic: 600mV @ 100mA, 1A
  • Current - Collector Cutoff (Max): 500µA
  • DC Current Gain (hFE) (Min) @ Ic, Vce: 30 @ 500mA, 1V
  • Power - Max: 30W
  • Frequency - Transition: 3MHz
  • Mounting Type: Through Hole
  • Package / Case: TO-225AA, TO-126-3
  • Supplier Device Package: TO-225AA
  • Base Part Number: 2N4923
  • detail: Bipolar (BJT) Transistor NPN 80V 1A 3MHz 30W Through Hole TO-225AA
