دیتاشیت MC33174DTBR2G
مشخصات دیتاشیت
| نام دیتاشیت | MC33174, MC35174 |
|---|---|
| حجم فایل | 83.457 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 5 |
دانلود دیتاشیت MC33174, MC35174 |
MC33174, MC35174 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Operational Amplifier/Comparator/Operational Amplifier

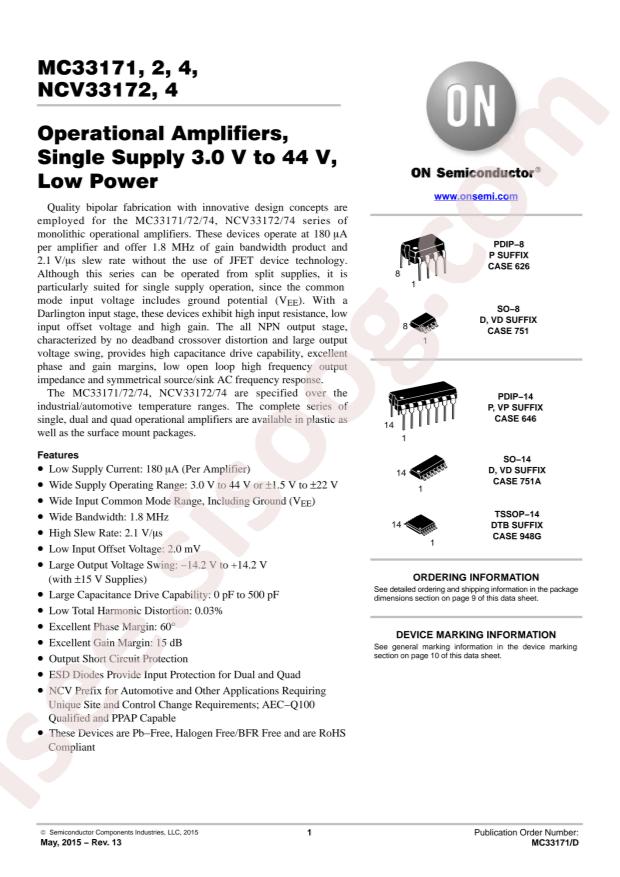

- Datasheet: onsemi MC33174DTBR2G
- -3db Bandwidth: -
- Output Current: 27mA
- Number of Circuits: 4
- Operating Temperature: -40°C~+85°C
- Current - Input Bias(Ib): 20nA
- Gain Bandwidth Product(GBP): 1.8MHz
- Package: TSSOP-14
- Manufacturer: onsemi
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Amplifier Type: General Purpose
- Output Type: -
- Slew Rate: 2V/µs
- Gain Bandwidth Product: 2.1MHz
- Current - Input Bias: 20nA
- Voltage - Input Offset: 1mV
- Current - Supply: 220µA
- Current - Output / Channel: 27mA
- Voltage - Supply, Single/Dual (±): 4V ~ 44V, ±2V ~ 22V
- Mounting Type: Surface Mount
- Package / Case: 14-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 14-SO
- Base Part Number: MC3317
- detail: General Purpose Amplifier 4 Circuit 14-SO
