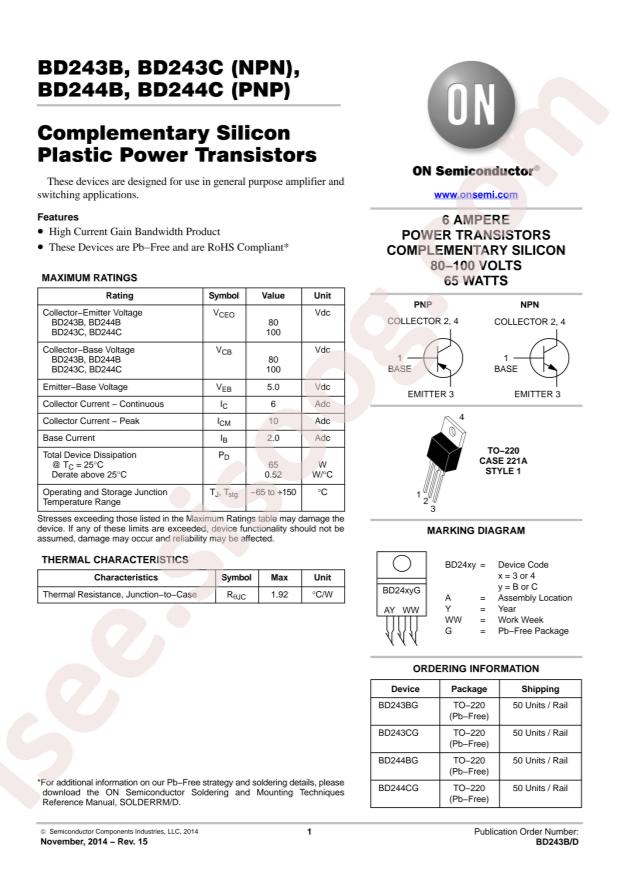

دیتاشیت BD243CG
مشخصات دیتاشیت
| نام دیتاشیت |
BD243CG
|
| حجم فایل |
86.672
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
7
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
onsemi BD243CG
-
Transistor Type:
NPN
-
Operating Temperature:
-65°C~+150°C@(Tj)
-
Collector Current (Ic):
6A
-
Power Dissipation (Pd):
65W
-
Transition Frequency (fT):
3MHz
-
DC Current Gain (hFE@Ic,Vce):
15@3A,4V
-
Collector Cut-Off Current (Icbo):
700uA
-
Collector-Emitter Breakdown Voltage (Vceo):
100V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
1.5V@1A,6A
-
Package:
TO-220
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Obsolete
-
Current - Collector (Ic) (Max):
6A
-
Voltage - Collector Emitter Breakdown (Max):
100V
-
Vce Saturation (Max) @ Ib, Ic:
1.5V @ 1A, 6A
-
Current - Collector Cutoff (Max):
700µA
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
15 @ 3A, 4V
-
Power - Max:
65W
-
Frequency - Transition:
-
-
Mounting Type:
Through Hole
-
Package / Case:
TO-220-3
-
Supplier Device Package:
TO-220AB
-
Base Part Number:
BD243
-
detail:
Bipolar (BJT) Transistor NPN 100V 6A 65W Through Hole TO-220AB
