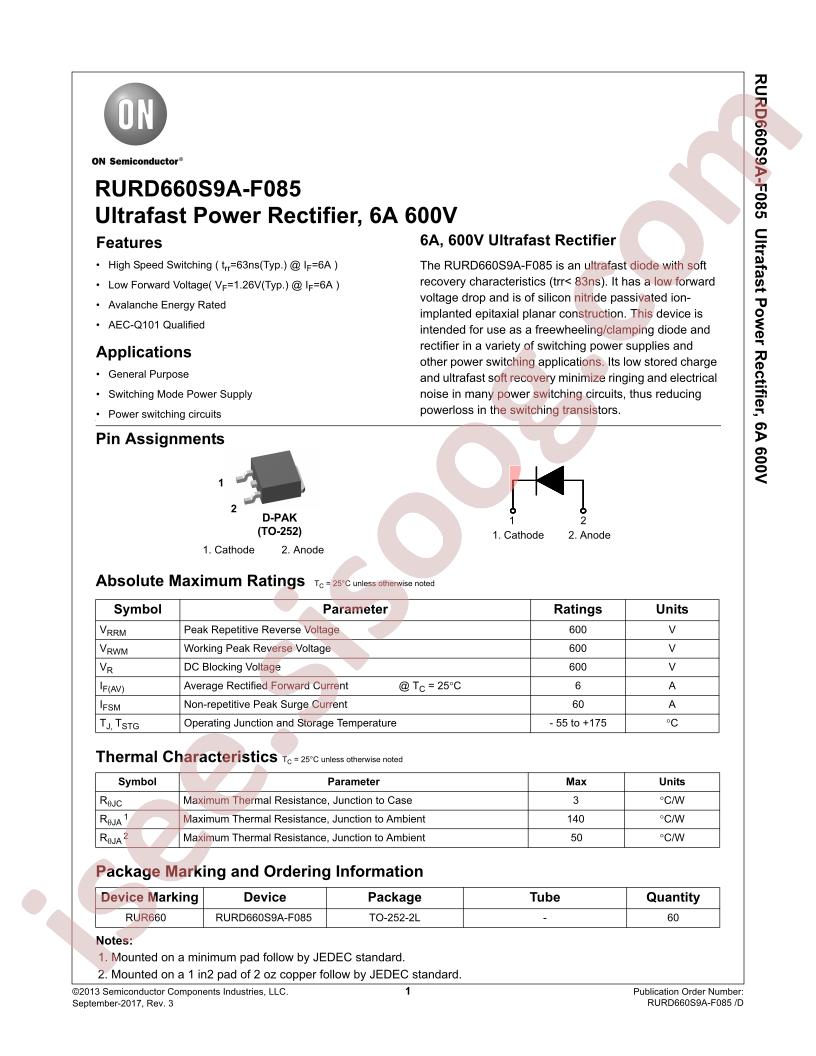

RURD660S9A-F085 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
RURD660S9A-F085
|
|
حجم فایل
|
86.731
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
6
|
مشخصات فنی
-
RoHS:
true
-
Category:
Diodes/Diodes - Fast Recovery Rectifiers
-
Datasheet:
onsemi RURD660S9A-F085
-
Reverse Voltage (Vr):
1000V
-
Operating Temperature:
-55°C~+175°C
-
Forward Voltage (Vf@If):
1.5V@6A
-
Reverse Leakage Current:
100uA@600V
-
Average Rectified Current (Io):
6A
-
Package:
DPAK-3
-
Manufacturer:
onsemi
-
Series:
Automotive, AEC-Q101
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Diode Type:
Standard
-
Voltage - DC Reverse (Vr) (Max):
600V
-
Current - Average Rectified (Io):
6A
-
Voltage - Forward (Vf) (Max) @ If:
1.5V @ 6A
-
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
-
Reverse Recovery Time (trr):
83ns
-
Current - Reverse Leakage @ Vr:
100µA @ 600V
-
Capacitance @ Vr, F:
-
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-252-3, DPak (2 Leads + Tab), SC-63
-
Supplier Device Package:
TO-252AA
-
Operating Temperature - Junction:
-55°C ~ 175°C
-
Base Part Number:
RURD66
-
detail:
Diode Standard 600V 6A Surface Mount TO-252AA
