دیتاشیت 2N6038G

مشخصات دیتاشیت

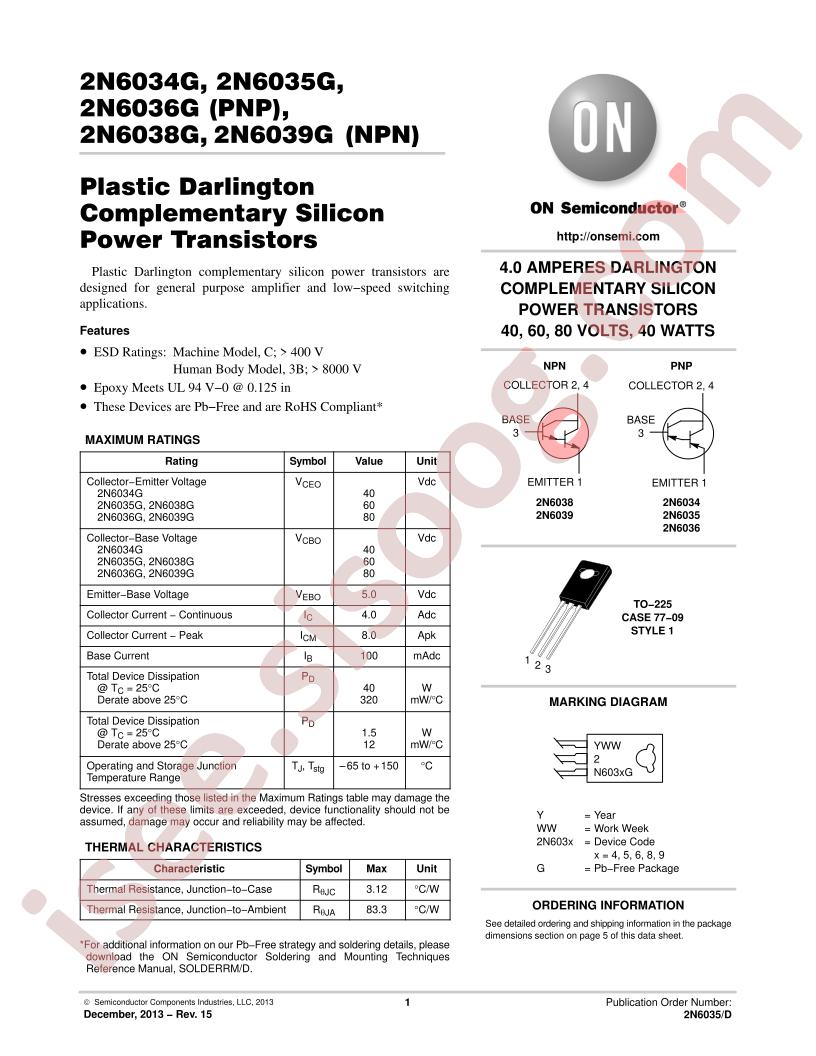

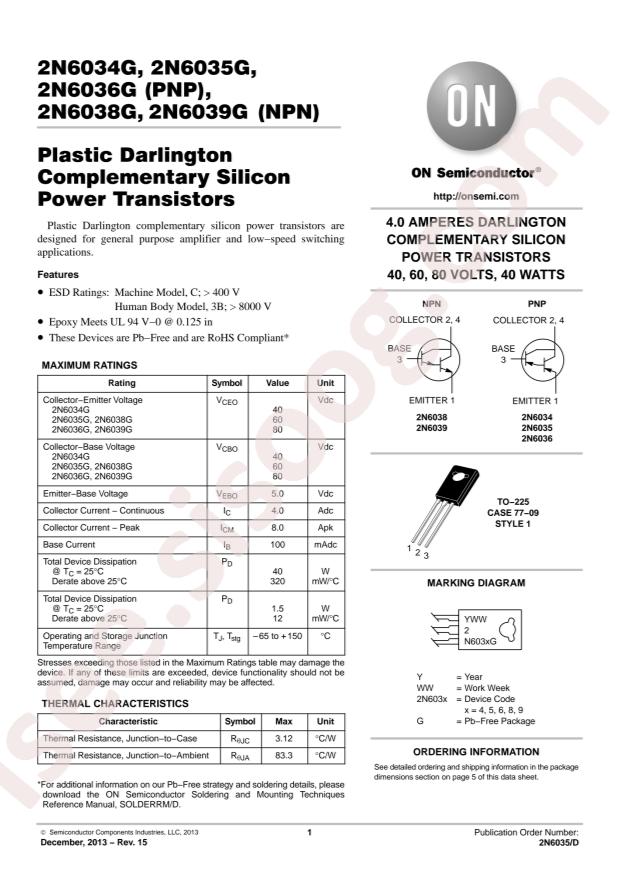

دانلود دیتاشیت 2N6034(35, 36, 38,39)	2N6034(35, 36, 38,39) Datasheet

RoHS: true
Category: Triode/MOS Tube/Transistor/Darlington Transistors
Datasheet: onsemi 2N6038G

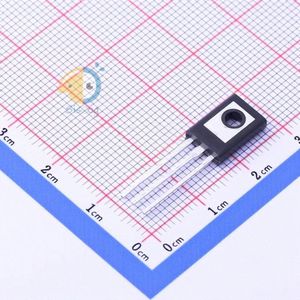

Package: TO-225
Manufacturer: onsemi
Series: -
Packaging: Bulk
Part Status: Obsolete
Transistor Type: NPN - Darlington
Current - Collector (Ic) (Max): 4A
Voltage - Collector Emitter Breakdown (Max): 60V
Vce Saturation (Max) @ Ib, Ic: 3V @ 40mA, 4A
Current - Collector Cutoff (Max): 100µA
DC Current Gain (hFE) (Min) @ Ic, Vce: 750 @ 2A, 3V
Power - Max: 40W
Frequency - Transition: -
Operating Temperature: -65°C ~ 150°C (TJ)
Mounting Type: Through Hole
Package / Case: TO-225AA, TO-126-3
Supplier Device Package: TO-225AA
Base Part Number: 2N6038
detail: Bipolar (BJT) Transistor NPN - Darlington 60V 4A 40W Through Hole TO-225AA
