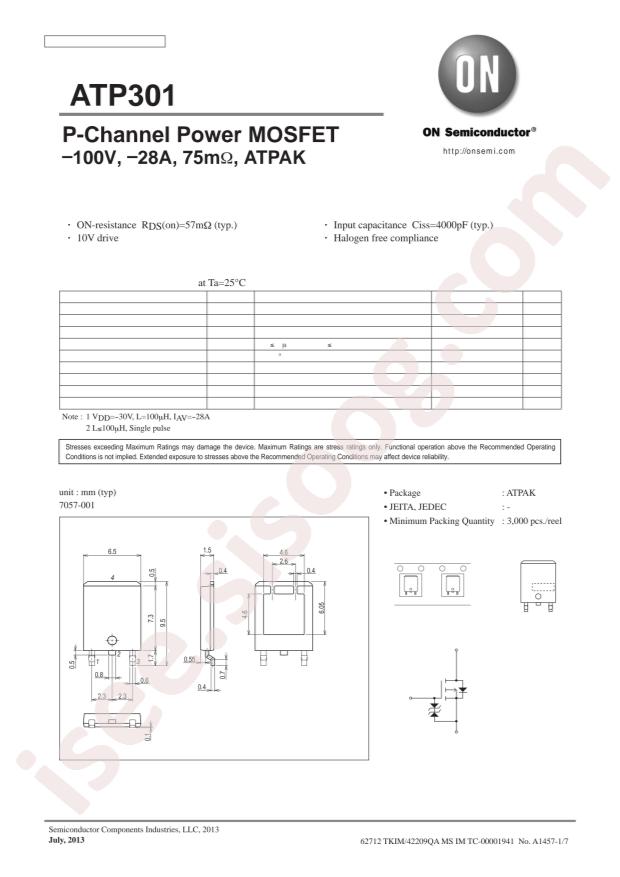

ATP301-TL-H دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
ATP301-TL-H
|
|
حجم فایل
|
54.078
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
7
|
مشخصات فنی
-
RoHS:
true
-
Type:
P Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi ATP301-TL-H
-
Power Dissipation (Pd):
70W
-
Total Gate Charge (Qg@Vgs):
73nC@10V
-
Drain Source Voltage (Vdss):
100V
-
Input Capacitance (Ciss@Vds):
4000pF@20V
-
Continuous Drain Current (Id):
28A
-
Gate Threshold Voltage (Vgs(th)@Id):
-
-
Reverse Transfer Capacitance (Crss@Vds):
-
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
75mΩ@14A,10V
-
Package:
-
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
P-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
100V
-
Current - Continuous Drain (Id) @ 25°C:
28A (Ta)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
75mOhm @ 14A, 10V
-
Vgs(th) (Max) @ Id:
-
-
Gate Charge (Qg) (Max) @ Vgs:
73nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
4000pF @ 20V
-
FET Feature:
-
-
Power Dissipation (Max):
70W (Tc)
-
Operating Temperature:
150°C (TJ)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
ATPAK
-
Package / Case:
ATPAK (2 leads+tab)
-
Base Part Number:
ATP301
-
detail:
P-Channel 100V 28A (Ta) 70W (Tc) Surface Mount ATPAK
