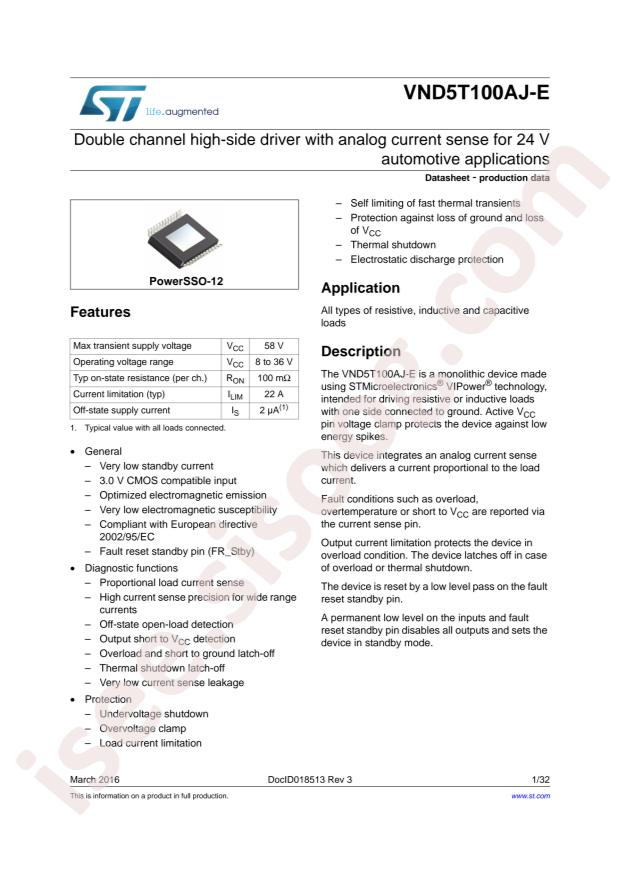

دیتاشیت VND5T100AJTR-E
مشخصات دیتاشیت
| نام دیتاشیت | VND5T100AJTR-E |
|---|---|
| حجم فایل | 77.588 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 32 |
VND5T100AJTR-E |
دانلود دیتاشیت |
|---|
سایر مستندات
VND5T100AJ-E 32 pages
User Manual VIPower MO-5T 111 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/Power Distribution Switches
- Datasheet: STMicroelectronics VND5T100AJTR-E
- Input Voltage: 8V~36V
- Output Current: 16A
- Number of Outputs: 2
- Resistor On-State: 100mΩ
- Operating Temperature -: -40°C~+150°C
- Package: PowerSSO-12
- Manufacturer: STMicroelectronics
- Series: VIPower™
- Packaging: Cut Tape (CT)
- Part Status: Active
- Switch Type: General Purpose
- Ratio - Input:Output: 1:1
- Output Configuration: High Side
- Output Type: N-Channel
- Interface: On/Off
- Voltage - Load: 8V ~ 36V
- Voltage - Supply (Vcc/Vdd): Not Required
- Current - Output (Max): 16A
- Rds On (Typ): 100mOhm
- Input Type: Non-Inverting
- Features: -
- Fault Protection: Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: PowerSSO-12
- Package / Case: 12-PowerLSOP (0.154", 3.90mm Width)
- Base Part Number: VND5T100
- detail: Power Switch/Driver 1:1 N-Channel 16A PowerSSO-12
