دیتاشیت LB1836M-TLM-E

LB1836M

مشخصات دیتاشیت

نام دیتاشیت LB1836M
حجم فایل 72.91 کیلوبایت
نوع فایل pdf
تعداد صفحات 6

دانلود دیتاشیت LB1836M

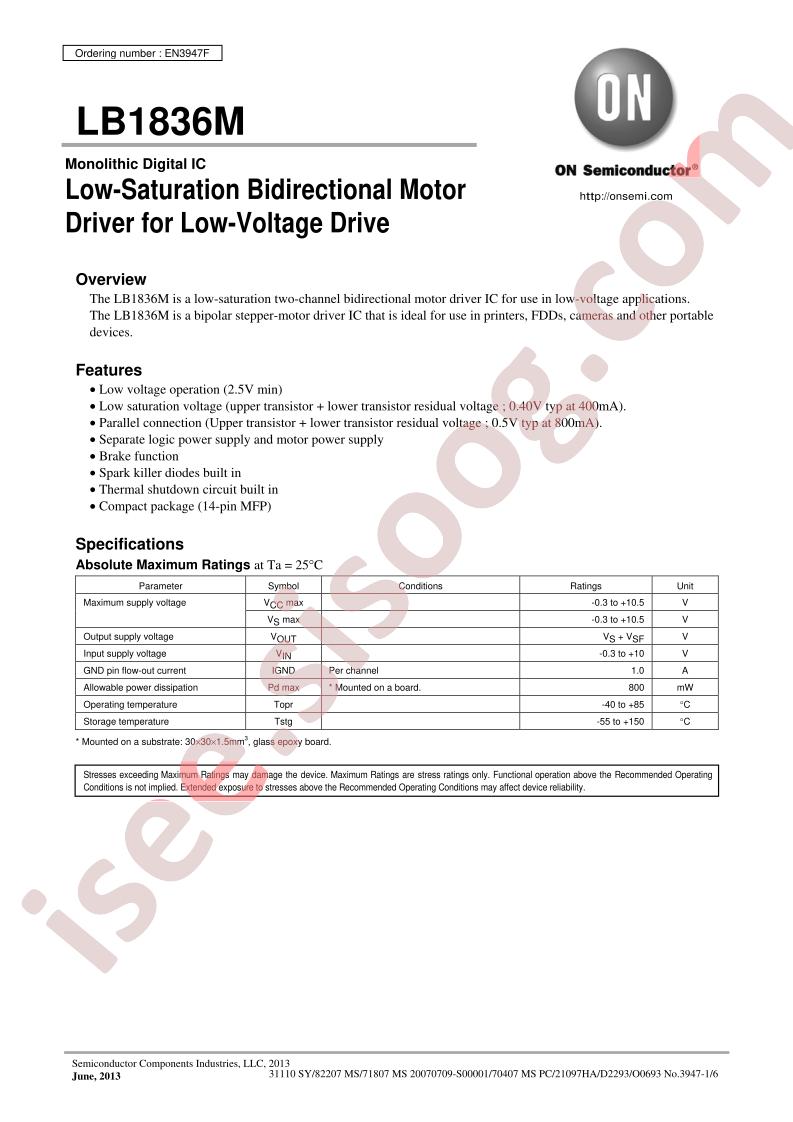

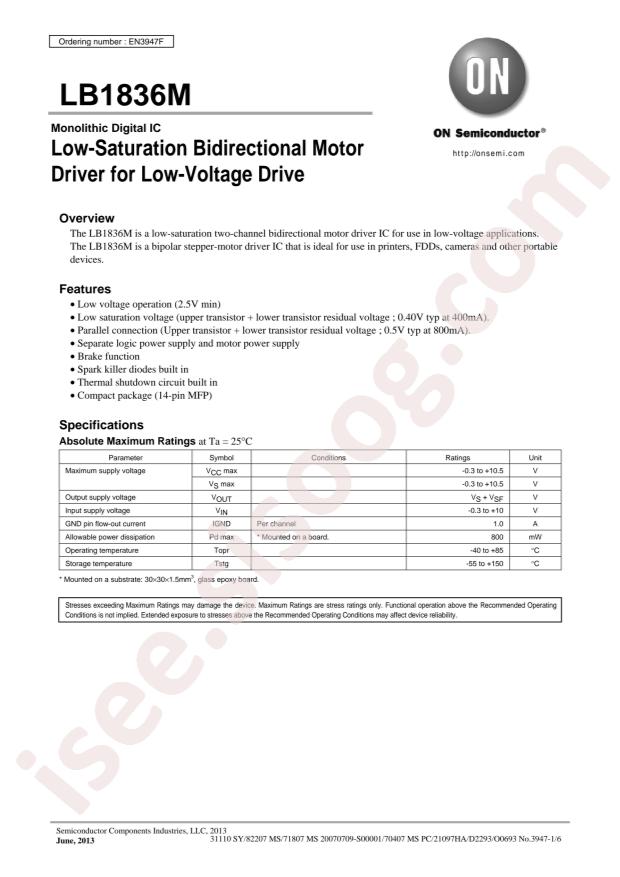

LB1836M Datasheet

مشخصات

  • Manufacturer: ON Semiconductor
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Output Configuration: Half Bridge (4)
  • Applications: DC Motors, General Purpose
  • Interface: Logic
  • Load Type: Inductive
  • Technology: Bipolar
  • Rds On (Typ): -
  • Current - Output / Channel: 1A
  • Current - Peak Output: -
  • Voltage - Supply: 2.5V ~ 9V
  • Voltage - Load: 1.8V ~ 9V
  • Operating Temperature: -40°C ~ 85°C (TA)
  • Features: -
  • Fault Protection: Over Temperature
  • Mounting Type: Surface Mount
  • Package / Case: 14-LSOP (0.173", 4.40mm Width)
  • Supplier Device Package: 14-MFPS
  • Base Part Number: LB1836
  • detail: Half Bridge (4) Driver DC Motors, General Purpose Bipolar 14-MFPS
