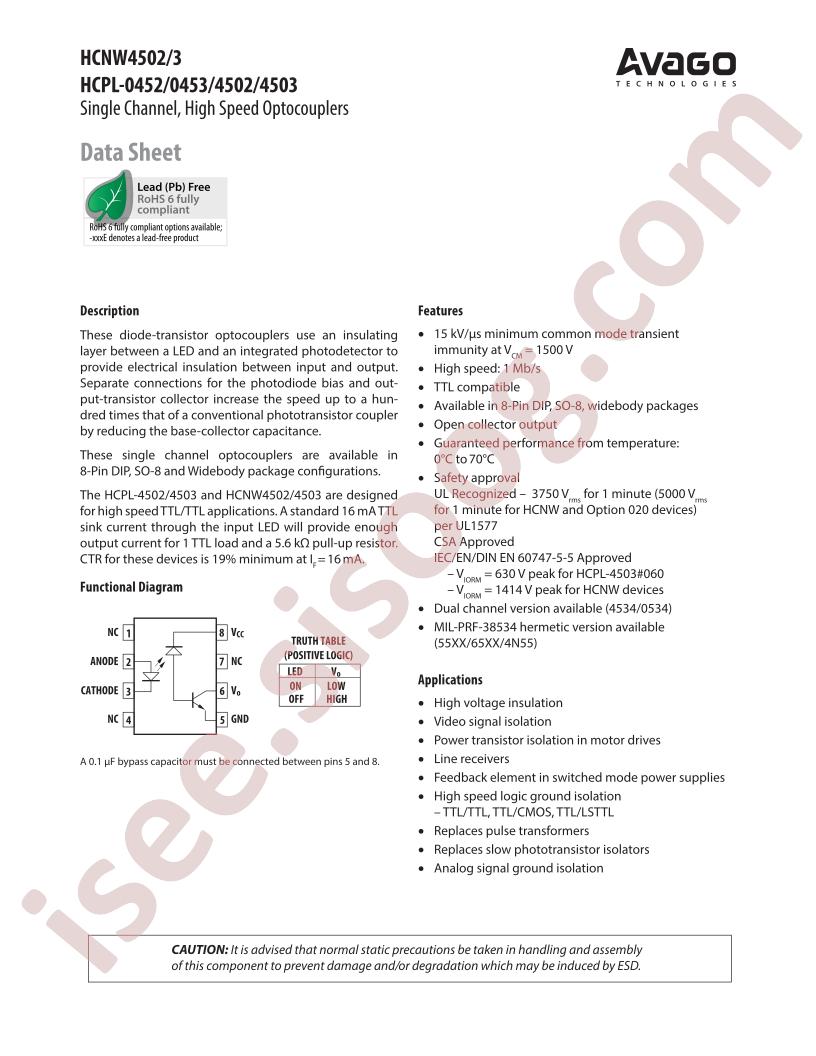

دیتاشیت HCNW4503-000E
مشخصات دیتاشیت
| نام دیتاشیت |
HCNW4503-000E
|
| حجم فایل |
360.178
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
16
|
مشخصات
-
RoHS:
true
-
Category:
Optocoupler/LED/Digital Tube/Photoelectric Device/Optocouplers - Logic Output
-
Data Rate:
1Mbit/s
-
Datasheet:
Broadcom/AVAGO HCNW4503-000E
-
Input Type:
DC
-
Supply Voltage:
-
-
Number of Channels:
1
-
Operating Temperature:
-55°C~+100°C
-
Isolation Voltage(rms):
3750V
-
Propagation Delay tpLH/tpHL:
1us
-
Common Mode Transient Immunity (CMTI):
15kV/us
-
Package:
DIP-8
-
Manufacturer:
Broadcom/AVAGO
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Voltage - Isolation:
5000Vrms
-
Current Transfer Ratio (Min):
15% @ 16mA
-
Current Transfer Ratio (Max):
-
-
Turn On / Turn Off Time (Typ):
1µs, 1µs (Max)
-
Rise / Fall Time (Typ):
-
-
Output Type:
Transistor
-
Voltage - Output (Max):
20V
-
Current - Output / Channel:
8mA
-
Voltage - Forward (Vf) (Typ):
1.68V
-
Current - DC Forward (If) (Max):
25mA
-
Vce Saturation (Max):
-
-
Mounting Type:
Through Hole
-
Package / Case:
8-DIP (0.400", 10.16mm)
-
Supplier Device Package:
8-DIP
-
detail:
Optoisolator Transistor Output 5000Vrms 1 Channel 8-DIP
