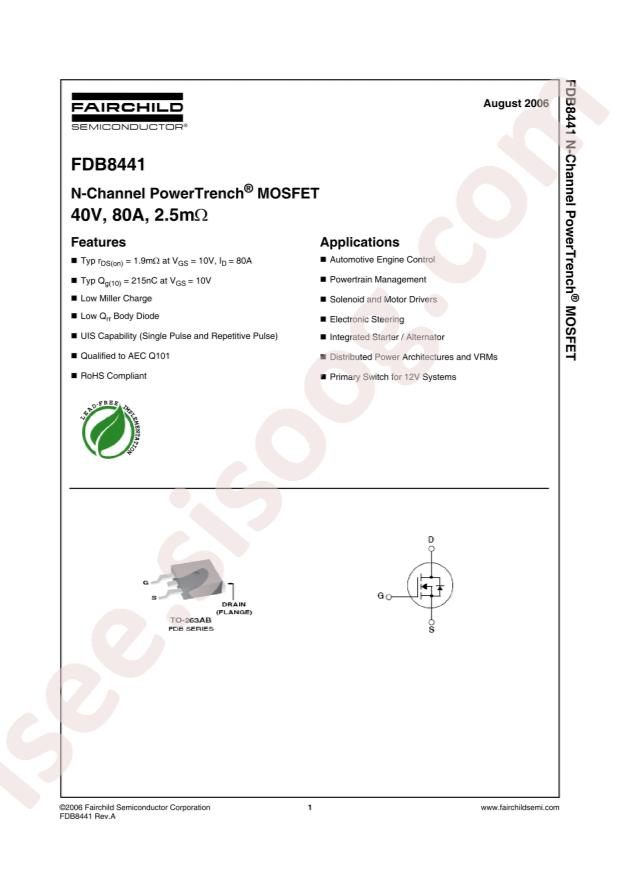

FDB8441 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
FDB8441
|
|
حجم فایل
|
43.616
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
7
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi FDB8441
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
300W
-
Total Gate Charge (Qg@Vgs):
280nC@10V
-
Drain Source Voltage (Vdss):
40V
-
Input Capacitance (Ciss@Vds):
15000pF@25V
-
Continuous Drain Current (Id):
28A;120A
-
Gate Threshold Voltage (Vgs(th)@Id):
4V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
4.3mΩ@10V,80A
-
Package:
TO-263-3
-
Manufacturer:
onsemi
-
Series:
PowerTrench®
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
40V
-
Current - Continuous Drain (Id) @ 25°C:
28A (Ta), 120A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
2.5mOhm @ 80A, 10V
-
Vgs(th) (Max) @ Id:
4V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
280nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
15000pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
300W (Tc)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
TO-263AB
-
Package / Case:
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
-
Base Part Number:
FDB844
-
detail:
N-Channel 40V 28A (Ta), 120A (Tc) 300W (Tc) Surface Mount TO-263AB
