FQP13N06L دیتاشیت

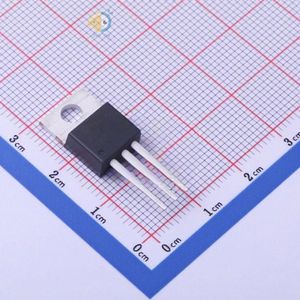

FQP13N06L

مشخصات دیتاشیت

نام دیتاشیت FQP13N06L
حجم فایل 70.016 کیلوبایت
نوع فایل pdf
تعداد صفحات 10

دانلود دیتاشیت FQP13N06L

دانلود دیتاشیت

سایر مستندات

TO220B03 Pkg Drawing 1 pages

مشخصات فنی

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: onsemi FQP13N06L
  • Operating Temperature: -55°C~+175°C@(Tj)
  • Power Dissipation (Pd): 45W
  • Total Gate Charge (Qg@Vgs): 6.4nC@5V
  • Input Capacitance (Ciss@Vds): 350pF@25V
  • Continuous Drain Current (Id): 13.6A
  • Gate Threshold Voltage (Vgs(th)@Id): 2.5V@250uA
  • Reverse Transfer Capacitance (Crss@Vds): -
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 110mΩ@6.8A,10V
  • Package: TO-220
  • Manufacturer: onsemi
  • Series: QFET®
  • Packaging: Tube
  • Part Status: Obsolete
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 60V
  • Current - Continuous Drain (Id) @ 25°C: 13A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 135mOhm @ 6.5A, 10V
  • Vgs(th) (Max) @ Id: 4V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 7.5nC @ 10V
  • Vgs (Max): ±25V
  • Input Capacitance (Ciss) (Max) @ Vds: 310pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 45W (Tc)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-220-3
  • Package / Case: TO-220-3
  • Base Part Number: FQP1
  • detail: N-Channel 60V 13A (Tc) 45W (Tc) Through Hole TO-220-3
