HSMW-C170 Datasheet

HSMW-C191,190,170,150,110,265

Datasheet specifications

Datasheet's name HSMW-C191,190,170,150,110,265
File size 282.567 KB
File type pdf
Number of pages 11

Download Datasheet HSMW-C191,190,170,150,110,265

Download Datasheet

Other documentations

No other documentation was found!

Technical specifications

  • Manufacturer: Broadcom Limited
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Color: White
  • Configuration: Standard
  • Lens Color: White
  • Lens Transparency: Diffused
  • Millicandela Rating: 95mcd
  • Lens Style: Rectangle with Flat Top
  • Lens Size: 1.40mm x 1.25mm
  • Voltage - Forward (Vf) (Typ): 3.6V
  • Current - Test: 20mA
  • Viewing Angle: 130°
  • Mounting Type: Surface Mount
  • Wavelength - Dominant: -
  • Wavelength - Peak: -
  • Features: -
  • Package / Case: 0805 (2012 Metric)
  • Supplier Device Package: 2-SMD
  • Size / Dimension: 2.00mm L x 1.25mm W
  • Height (Max): 0.90mm

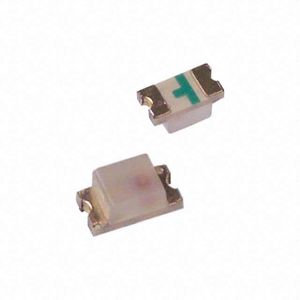

  • detail: White LED Indication - Discrete 3.6V 0805 (2012 Metric)
