دیتاشیت BYV32-200G

BYV32-200

مشخصات دیتاشیت

نام دیتاشیت BYV32-200
حجم فایل 94.017 کیلوبایت
نوع فایل pdf
تعداد صفحات 5

دانلود دیتاشیت BYV32-200

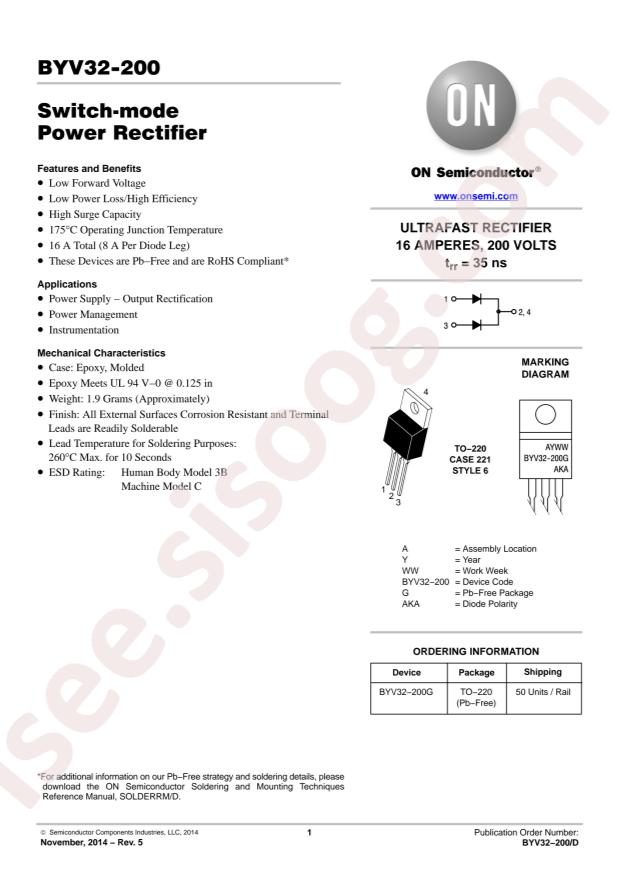

BYV32-200 Datasheet

مشخصات

  • RoHS: true
  • Category: Diodes/Diodes - Fast Recovery Rectifiers
  • Datasheet: onsemi BYV32-200G
  • Diode Configuration: Dual Common Cathode
  • Reverse Voltage (Vr): 200V
  • Operating Temperature: -65°C~+175°C@(Tj)
  • Forward Voltage (Vf@If): 1.01V@20A
  • Reverse Leakage Current: 3.5uA@200V
  • Reverse Recovery Time (trr): 250ns
  • Average Rectified Current (Io): 8A
  • Package: TO-220
  • Manufacturer: onsemi
  • Series: SWITCHMODE™
  • Packaging: Tube
  • Part Status: Active
  • Diode Type: Standard
  • Voltage - DC Reverse (Vr) (Max): 200V
  • Current - Average Rectified (Io) (per Diode): 8A
  • Voltage - Forward (Vf) (Max) @ If: 1.15V @ 20A
  • Speed: Fast Recovery =< 500ns, > 200mA (Io)
  • Current - Reverse Leakage @ Vr: 50µA @ 200V
  • Operating Temperature - Junction: -65°C ~ 175°C
  • Mounting Type: Through Hole
  • Package / Case: TO-220-3
  • Supplier Device Package: TO-220AB
  • Base Part Number: BYV32
  • detail: Diode Array 1 Pair Common Cathode Standard 200V 8A Through Hole TO-220-3
