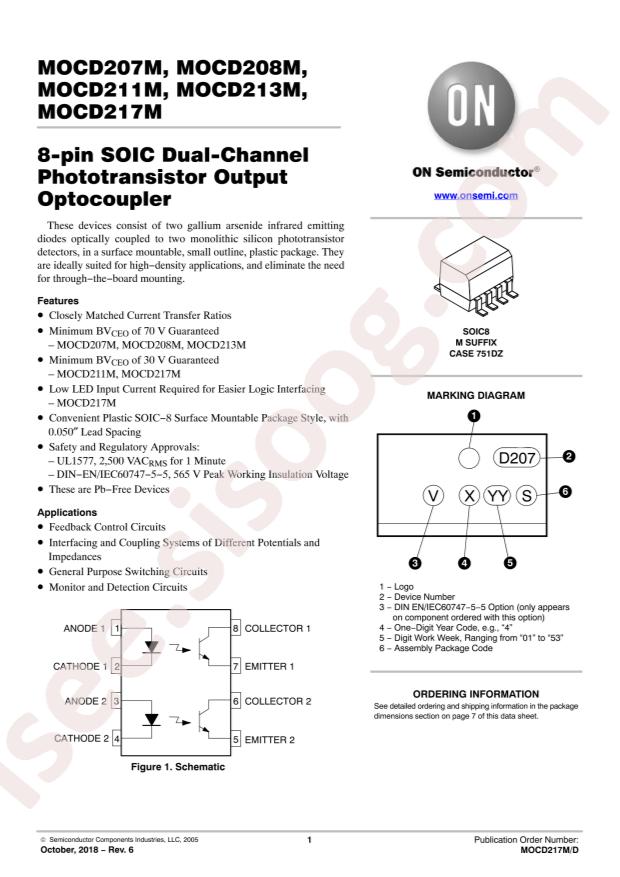

دیتاشیت MOCD208M
مشخصات دیتاشیت
| نام دیتاشیت |
MOCD2xxM
|
| حجم فایل |
170.181
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
9
|
مشخصات
-
RoHS:
true
-
Category:
Optocoupler/LED/Digital Tube/Photoelectric Device/Optocouplers - Phototransistor Output
-
Datasheet:
onsemi MOCD208M
-
Fall time:
4.7us@2mA,100Ω
-
Rise time:
3.2us@2mA,100Ω
-
Output Type:
Phototransistor
-
Output Current:
150mA
-
Forward Voltage:
1.25V
-
Reverse Voltage:
6V
-
Number of Outputs:
2
-
Input voltage type:
DC
-
Operating Temperature:
-40°C~+100°C
-
Receiving End Voltage:
70V
-
Isolation Voltage(rms):
2500V
-
Collector-Emitter Saturation Voltage (Vce(sat)@Ic,IF):
0.4V@2mA,10mA
-
Package:
SOIC-8
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Number of Channels:
2
-
Voltage - Isolation:
2500Vrms
-
Current Transfer Ratio (Min):
40% @ 10mA
-
Current Transfer Ratio (Max):
125% @ 10mA
-
Turn On / Turn Off Time (Typ):
7.5µs, 5.7µs
-
Rise / Fall Time (Typ):
3.2µs, 4.7µs
-
Input Type:
DC
-
Voltage - Output (Max):
70V
-
Current - Output / Channel:
150mA
-
Voltage - Forward (Vf) (Typ):
1.25V
-
Current - DC Forward (If) (Max):
60mA
-
Vce Saturation (Max):
400mV
-
Mounting Type:
Surface Mount
-
Package / Case:
8-SOIC (0.154", 3.90mm Width)
-
Supplier Device Package:
8-SOIC
-
Base Part Number:
MOCD20
-
detail:
Optoisolator Transistor Output 2500Vrms 2 Channel 8-SOIC
