M1MA142WKT1G دیتاشیت

M1MA142WKT1G

مشخصات دیتاشیت

نام دیتاشیت M1MA142WKT1G
حجم فایل 95.143 کیلوبایت
نوع فایل pdf
تعداد صفحات 4

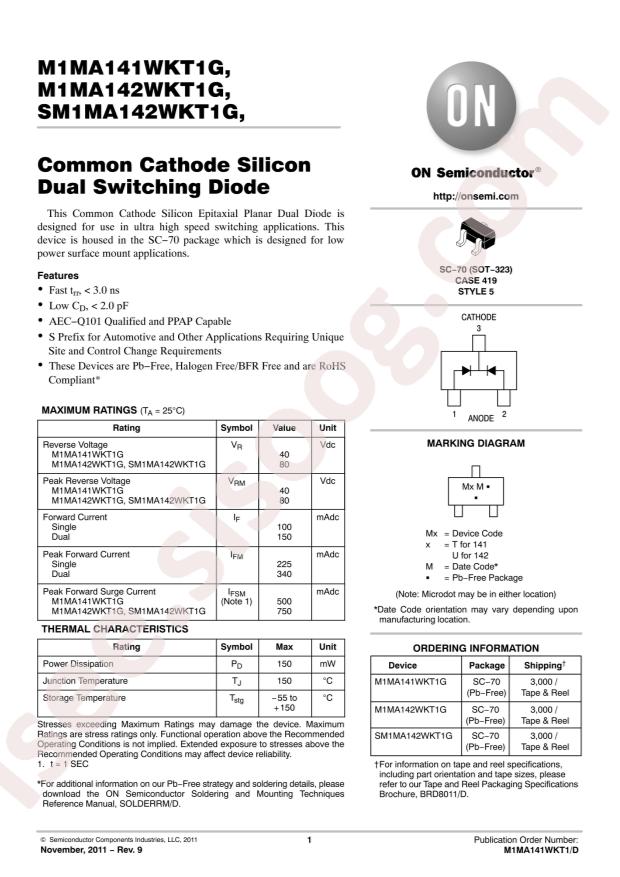

مشاهده دیتاشیت M1MA142WKT1G

دانلود دیتاشیت

سایر مستندات

M1MA14xWKT1, SM1MA142WKT1G 4 pages

مشخصات فنی

  • RoHS: true
  • Category: Diodes/Switching Diode
  • Datasheet: onsemi M1MA142WKT1G
  • Power Dissipation: 150mW
  • Diode Configuration: Dual Common Cathode
  • Reverse Voltage (Vr): 80V
  • Operating Temperature: +150°C@(Tj)
  • Forward Voltage (Vf@If): 1.2V@100mA
  • Reverse Leakage Current: 100nA@75V
  • Reverse Recovery Time (trr): 3ns
  • Average Rectified Current (Io): 100mA
  • Package: SOT-323(SC-70)
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Diode Type: Standard
  • Voltage - DC Reverse (Vr) (Max): 80V
  • Current - Average Rectified (Io) (per Diode): 100mA (DC)
  • Voltage - Forward (Vf) (Max) @ If: 1.2V @ 100mA
  • Speed: Small Signal =< 200mA (Io), Any Speed
  • Current - Reverse Leakage @ Vr: 100nA @ 75V
  • Operating Temperature - Junction: 150°C (Max)
  • Mounting Type: Surface Mount
  • Package / Case: SC-70, SOT-323
  • Supplier Device Package: SC-70-3 (SOT323)
  • Base Part Number: M1MA142
  • detail: Diode Array 1 Pair Common Cathode Standard 80V 100mA (DC) Surface Mount SC-70, SOT-323
