دیتاشیت TLV71311PDBVR

مشخصات دیتاشیت

TLV71311PDBVR	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/Linear Voltage Regulators (LDO)

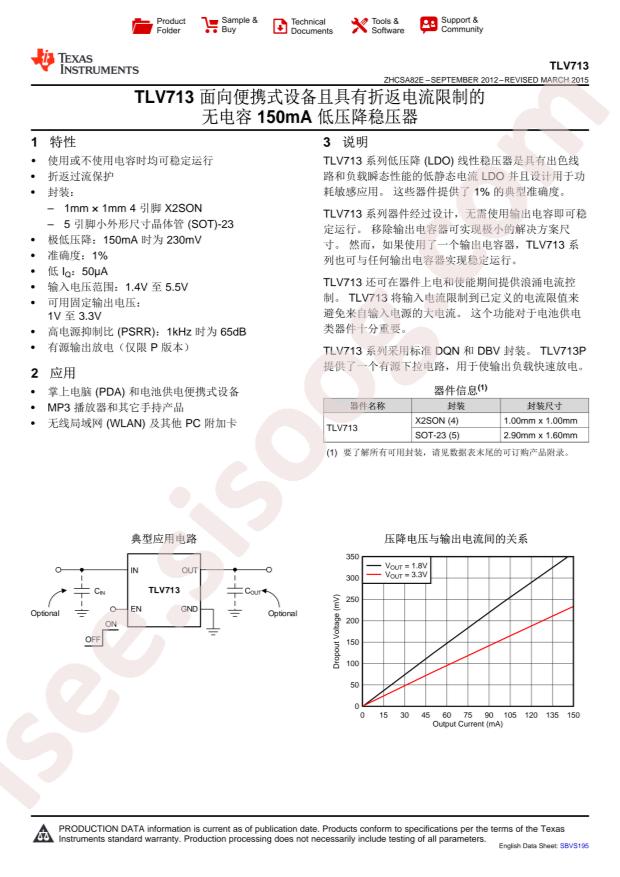

Datasheet: Texas Instruments TLV71311PDBVR
Output Type: Fixed
Output Current: 150mA
Output Voltage: 1.1V
Dropout Voltage: 1.02V@(150mA)
Output Polarity: Positive
Number of Outputs: 1
Maximum Input Voltage: 5.5V
Operating Temperature: -40°C~+125°C@(Tj)
Quiescent Current (Ground Current): 75uA
Power Supply Rejection Ratio (PSRR): 70dB@(100Hz),55dB@(1MHz)
Package: SOT-23-5
Manufacturer: Texas Instruments
Voltage - Input (Max): 5.5V
Current - Quiescent (Iq): 75µA
Output Configuration: Positive
Base Part Number: TLV713
Voltage - Output (Min/Fixed): 1.1V
Protection Features: Over Current, Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO)
Series: -
Packaging: Cut Tape (CT)
PSRR: 70dB ~ 55dB (100Hz ~ 1MHz)
Supplier Device Package: SOT-23-5
Package / Case: SC-74A, SOT-753
Number of Regulators: 1
Part Status: Active
Control Features: Enable
Voltage - Output (Max): -
Mounting Type: Surface Mount
Voltage Dropout (Max): 1.02V @ 150mA
Current - Output: 150mA
detail: Linear Voltage Regulator IC 1 Output 150mA SOT-23-5
