BCW65ALT1G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|

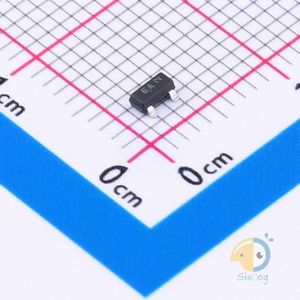

BCW65ALT1G
|
|
حجم فایل
|
74.873
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
4
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
onsemi BCW65ALT1G
-
Transistor Type:
NPN
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Collector Current (Ic):
800mA
-
Power Dissipation (Pd):
225mW
-
Transition Frequency (fT):
100MHz
-
DC Current Gain (hFE@Ic,Vce):
100@100mA,1V
-
Collector Cut-Off Current (Icbo):
20nA
-
Collector-Emitter Breakdown Voltage (Vceo):
32V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
700mV@50mA,500mA
-
Package:
SOT-23-3
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Obsolete
-
Current - Collector (Ic) (Max):
800mA
-
Voltage - Collector Emitter Breakdown (Max):
32V
-
Vce Saturation (Max) @ Ib, Ic:
700mV @ 50mA, 500mA
-
Current - Collector Cutoff (Max):
20nA
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
100 @ 100mA, 1V
-
Power - Max:
225mW
-
Frequency - Transition:
100MHz
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-236-3, SC-59, SOT-23-3
-
Supplier Device Package:
SOT-23-3 (TO-236)
-
Base Part Number:
BCW65
-
detail:
Bipolar (BJT) Transistor NPN 32V 800mA 100MHz 225mW Surface Mount SOT-23-3 (TO-236)
