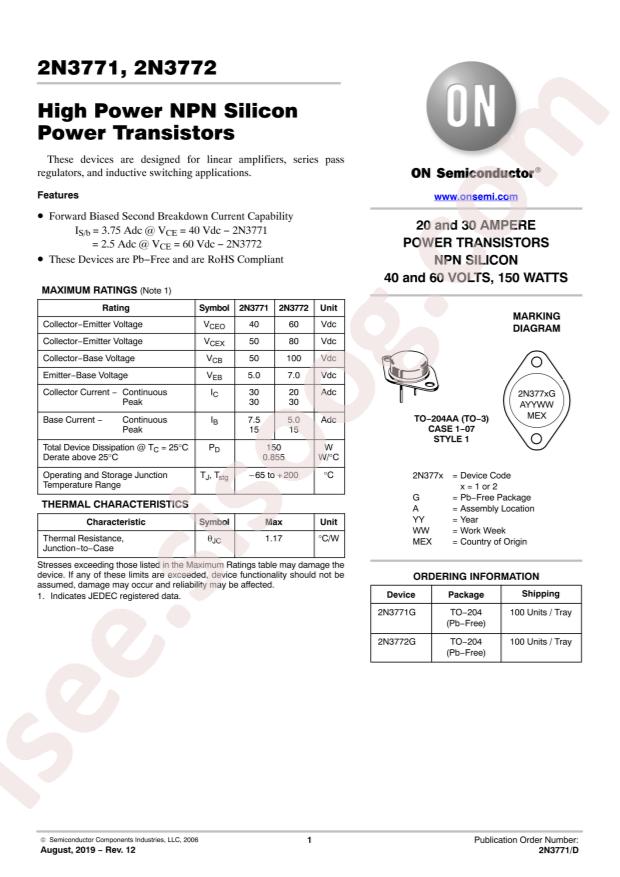

2N3771G Datasheet
Datasheet specifications
|
Datasheet's name
|
2N3771G
|
|
File size
|
76.443
KB
|
|
File type
|
pdf
|
|
Number of pages
|
6
|
Technical specifications
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
onsemi 2N3771G
-
Package:
TO-204
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Obsolete
-
Transistor Type:
NPN
-
Current - Collector (Ic) (Max):
30A
-
Voltage - Collector Emitter Breakdown (Max):
40V
-
Vce Saturation (Max) @ Ib, Ic:
4V @ 6A, 30A
-
Current - Collector Cutoff (Max):
10mA
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
15 @ 15A, 4V
-
Power - Max:
150W
-
Frequency - Transition:
200kHz
-
Operating Temperature:
-
-
Mounting Type:
Chassis Mount
-
Package / Case:
TO-204AA, TO-3
-
Supplier Device Package:
TO-3
-
Base Part Number:
2N37
-
detail:
Bipolar (BJT) Transistor NPN 40V 30A 200kHz 150W Chassis Mount TO-3
