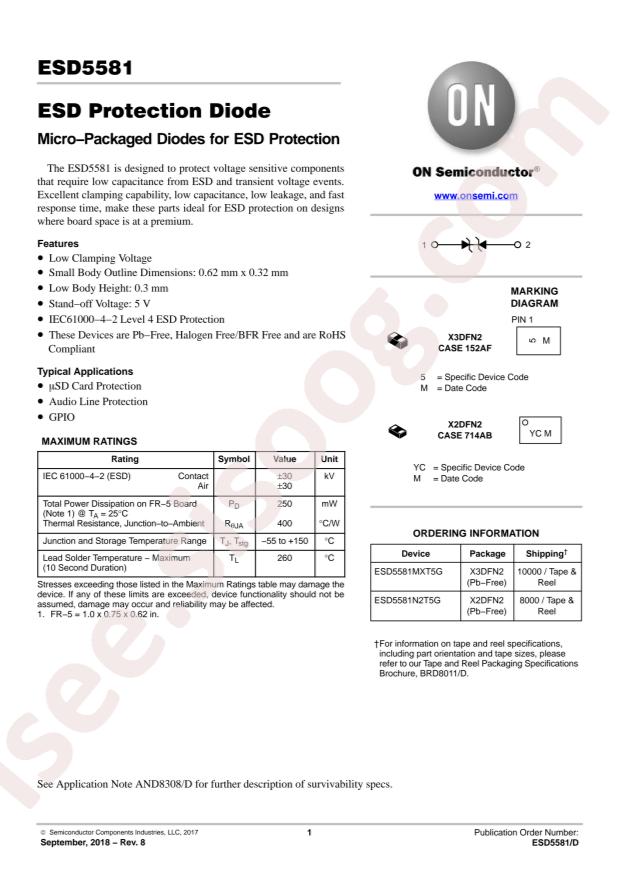

ESD5581MXT5G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|

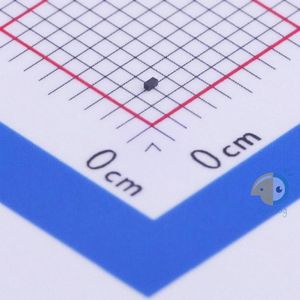

ESD5581MXT5G
|
|
حجم فایل
|
75.371
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
8
|
مشخصات فنی
-
RoHS:
true
-
Category:
TVS/Fuse/Board Level Protection/ESD Protection Devices
-
Datasheet:
onsemi ESD5581MXT5G
-
Package:
X3-DFN-2(0.3x0.6)
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Type:
Zener
-
Bidirectional Channels:
1
-
Voltage - Reverse Standoff (Typ):
5V (Max)
-
Voltage - Breakdown (Min):
5.2V
-
Voltage - Clamping (Max) @ Ipp:
12V
-
Current - Peak Pulse (10/1000µs):
6A (8/20µs)
-
Power - Peak Pulse:
-
-
Power Line Protection:
No
-
Applications:
General Purpose
-
Capacitance @ Frequency:
10pF @ 1MHz (Max)
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Surface Mount
-
Package / Case:
0201 (0603 Metric)
-
Supplier Device Package:
2-X3DFN (0.62x0.32)
-
Base Part Number:
ESD55
-
detail:
12V Clamp 6A (8/20µs) Ipp Tvs Diode Surface Mount 2-X3DFN (0.62x0.32)
