LM431ACM3X/NOPB 数据手册
其他文档

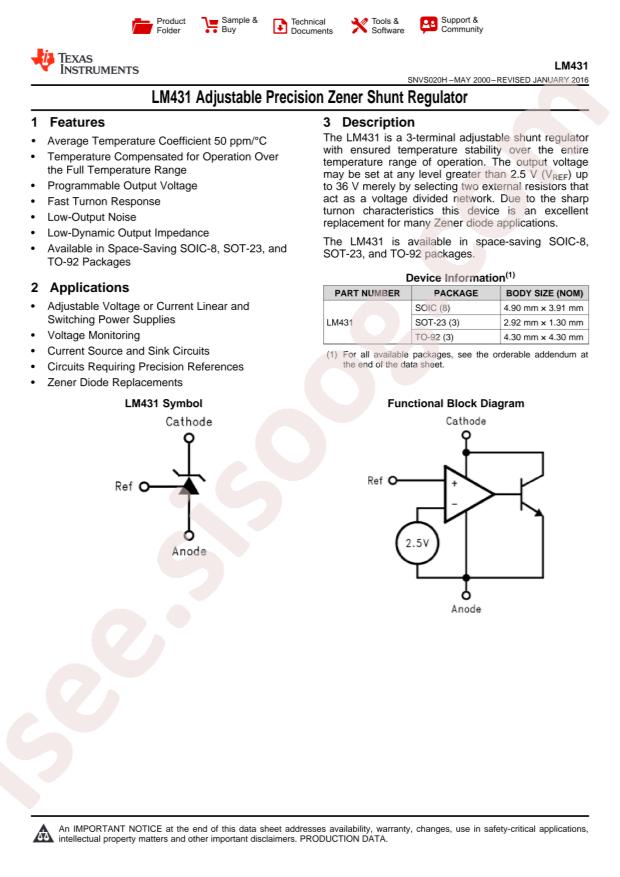

LM431 Datasheet 37 pages
技术规格
- RoHS: true
- Category: Power Supply Chip/Voltage References
- Datasheet: Texas Instruments LM431ACM3X/NOPB
- Tolerance: ±2.2%
- Output Type: Adjustable
- Output Current: 100mA
- Output Voltage: 2.495V~37V
- Reference Type: parallel connection
- Operating Temperature: 0°C~+70°C@(TA)
- Temperature Coefficient: 50ppm/°C
- Minimum Cathode Current for Regulation: 1mA
- Package: SOT-23
- Manufacturer: Texas Instruments
- Voltage - Input: -
- Base Part Number: LM431
- Supplier Device Package: 8-SOIC
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Current - Supply: -
- Current - Cathode: 1mA
- Part Status: Obsolete
- Current - Output: 100mA
- Noise - 10Hz to 10kHz: -
- Series: -
- Noise - 0.1Hz to 10Hz: -
- Voltage - Output (Min/Fixed): 2.495V
- Packaging: Tube
- Mounting Type: Surface Mount
- Voltage - Output (Max): 37V
- detail: Shunt Voltage Reference IC 37V ±2.2% 8-SOIC
