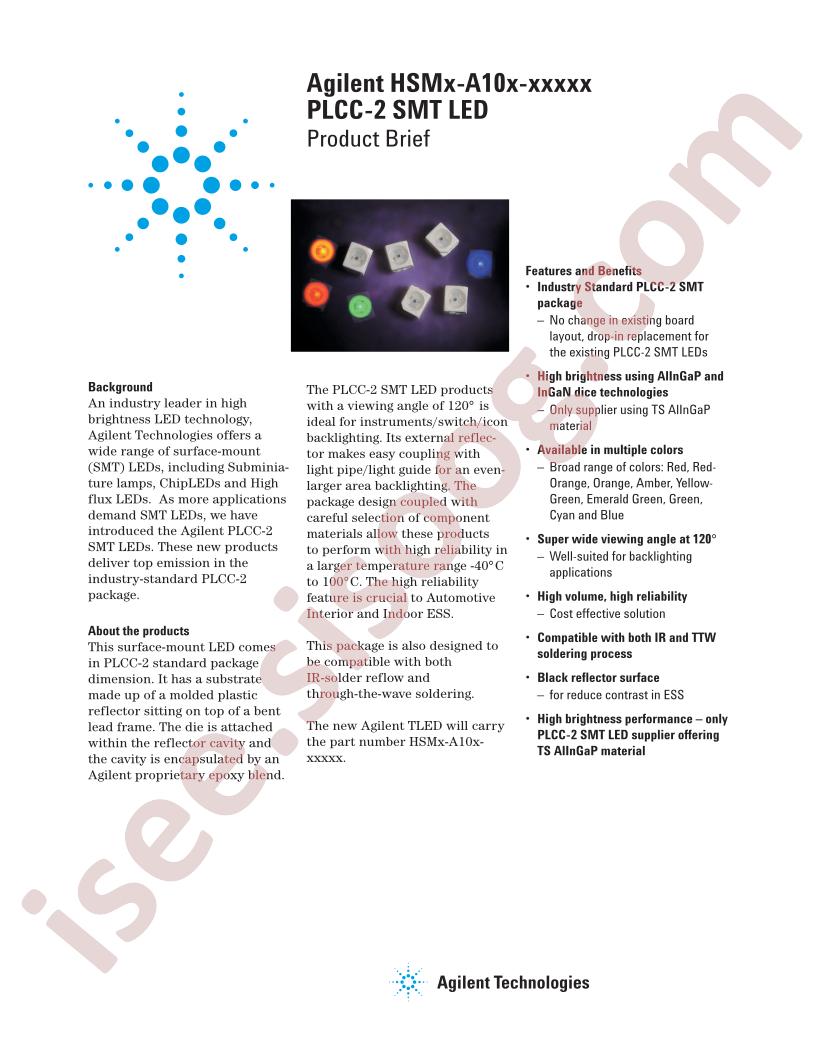

HSMH-A100-L00J1 数据手册
其他文档
未找到其他文档！
技术规格
- Manufacturer: Broadcom Limited
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Color: Red
- Configuration: Standard
- Lens Color: Colorless
- Lens Transparency: Clear
- Millicandela Rating: 15mcd
- Lens Style: Round with Flat Top
- Lens Size: 2.20mm Dia
- Voltage - Forward (Vf) (Typ): 1.9V
- Current - Test: 20mA
- Viewing Angle: 120°
- Mounting Type: Surface Mount
- Wavelength - Dominant: 637nm
- Wavelength - Peak: 645nm
- Features: -
- Package / Case: 2-PLCC
- Supplier Device Package: 2-PLCC
- Size / Dimension: 3.20mm L x 2.80mm W
- Height (Max): 2.10mm
- Base Part Number: HSMH-A100
- detail: Red 637nm LED Indication - Discrete 1.9V 2-PLCC
