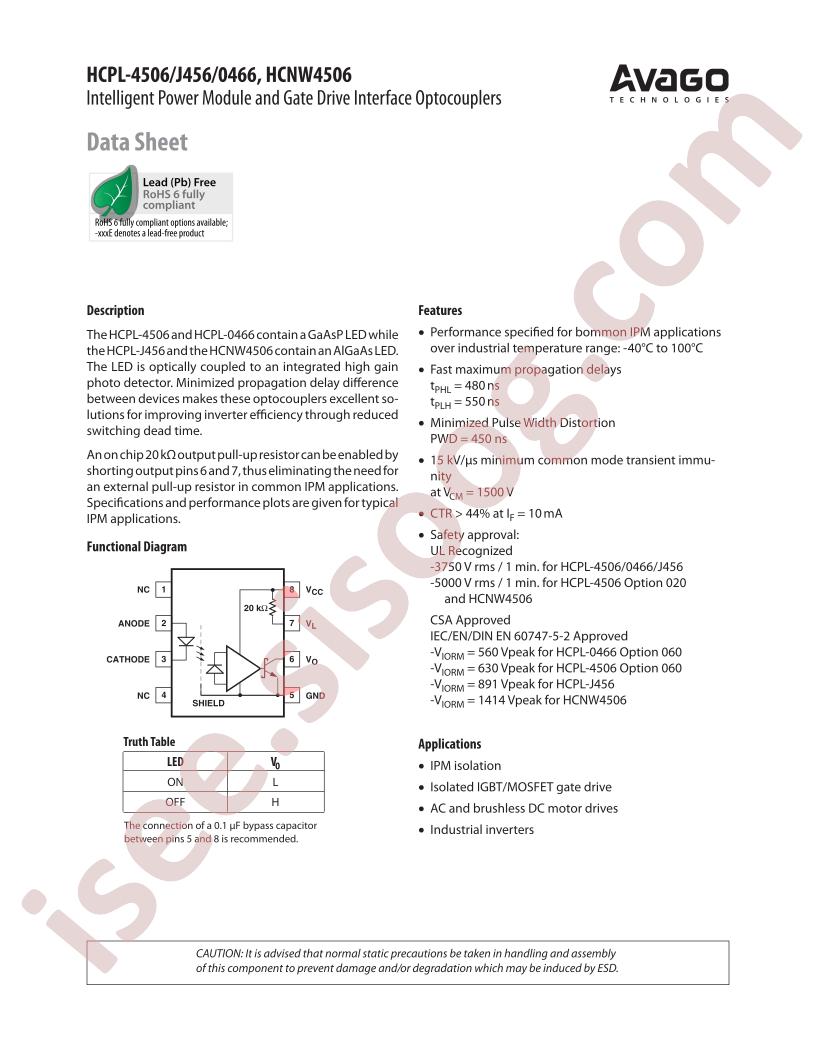

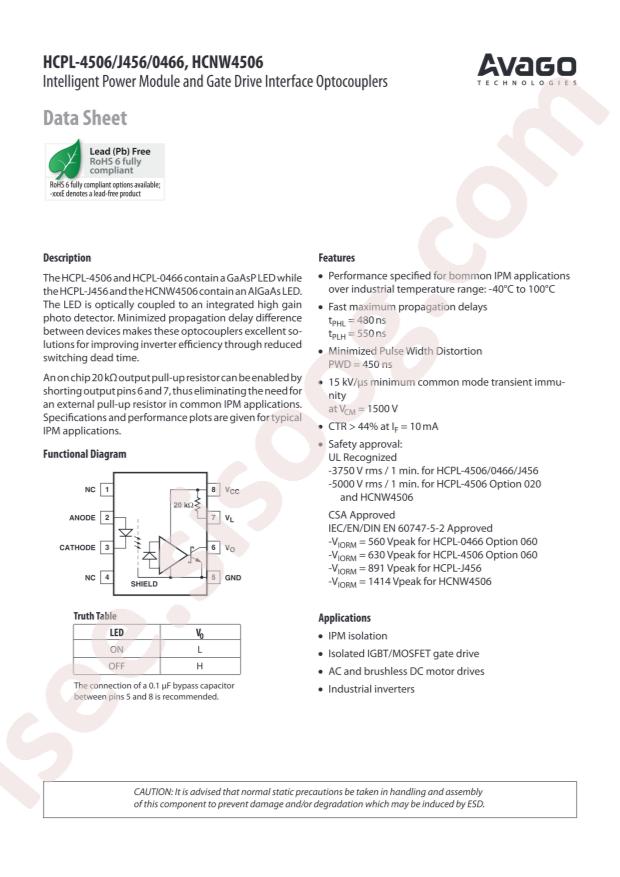

دیتاشیت HCPL-4506-500E
مشخصات دیتاشیت
| نام دیتاشیت |
HCPL-4506-500E
|
| حجم فایل |
383.147
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
21
|
مشخصات
-
Manufacturer:
Broadcom Limited
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Number of Channels:
1
-
Inputs - Side 1/Side 2:
1/0
-
Voltage - Isolation:
3750Vrms
-
Common Mode Transient Immunity (Min):
15kV/µs
-
Input Type:
DC
-
Output Type:
Open Collector, Schottky Clamped
-
Current - Output / Channel:
15mA
-
Data Rate:
-
-
Propagation Delay tpLH / tpHL (Max):
550ns, 400ns
-
Rise / Fall Time (Typ):
-
-
Voltage - Forward (Vf) (Typ):
1.5V
-
Current - DC Forward (If) (Max):
25mA
-
Voltage - Supply:
4.5V ~ 30V
-
Operating Temperature:
-40°C ~ 100°C
-
Mounting Type:
Surface Mount
-
Package / Case:
8-SMD, Gull Wing
-
Supplier Device Package:
8-DIP Gull Wing
-
detail:
Logic Output Optoisolator Open Collector, Schottky Clamped 3750Vrms 1 Channel 15kV/µs CMTI 8-DIP Gull Wing
