HSML-C190 Datasheet
Datasheet specifications
| Datasheet's name | HSML-C190 |
|---|---|
| File size | 235.893 KB |
| File type | |
| Number of pages | 11 |
Download Datasheet HSML-C190 |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Manufacturer: Broadcom Limited
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Color: Orange
- Configuration: Standard
- Lens Color: White
- Lens Transparency: Diffused
- Millicandela Rating: 90mcd
- Lens Style: Rectangle with Flat Top
- Lens Size: 1.00mm x 0.80mm
- Voltage - Forward (Vf) (Typ): 1.9V
- Current - Test: 20mA
- Viewing Angle: 170°
- Mounting Type: Surface Mount
- Wavelength - Dominant: 605nm
- Wavelength - Peak: 609nm
- Features: -
- Package / Case: 0603 (1608 Metric)
- Supplier Device Package: Chip LED

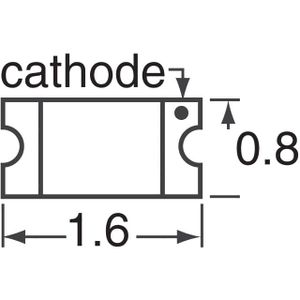

- Size / Dimension: 1.60mm L x 0.80mm W
- Height (Max): 0.80mm
- Base Part Number: HSML-C190
- detail: Orange 605nm LED Indication - Discrete 1.9V 0603 (1608 Metric)
