دیتاشیت ACHS-7124-000E

مشخصات دیتاشیت

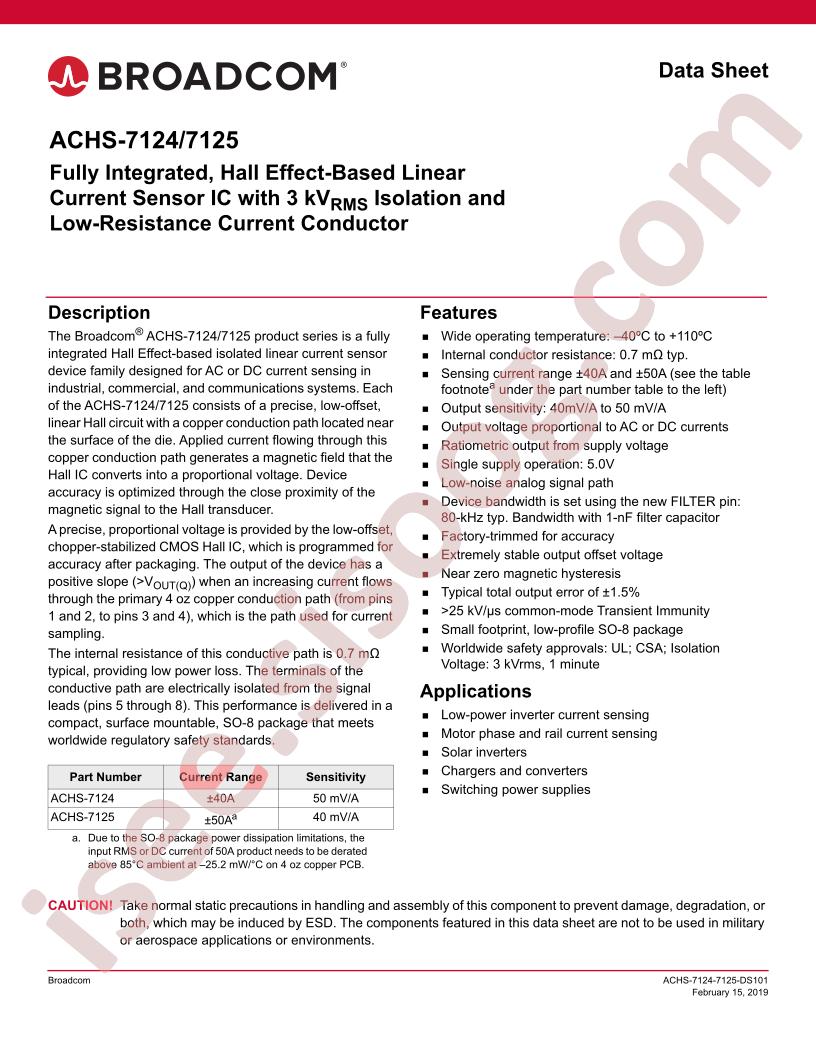

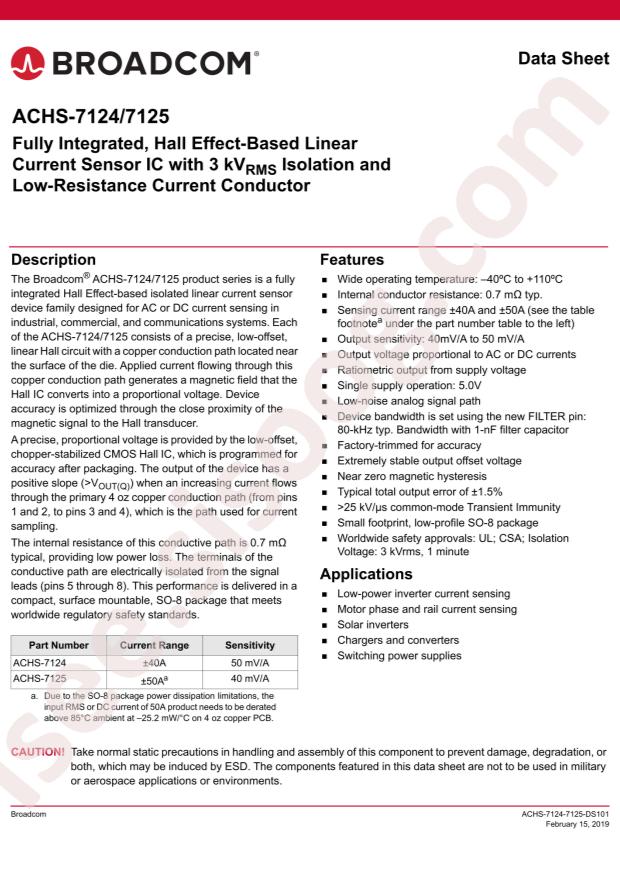

دانلود دیتاشیت ACHS-7124, ACHS-7125	ACHS-7124, ACHS-7125 Datasheet

Manufacturer: Broadcom Limited
Series: -
Packaging: Tube
Part Status: Active
For Measuring: AC/DC
Sensor Type: Hall Effect
Current - Sensing: 40A
Output: Ratiometric, Voltage
Sensitivity: 50mV/A
Frequency: 80kHz
Linearity: ±0.1%
Accuracy: -
Voltage - Supply: 4.5V ~ 5.5V
Response Time: 4µs
Current - Supply (Max): 15mA
Operating Temperature: -40°C ~ 110°C (TA)
Polarization: Bidirectional
Mounting Type: Surface Mount
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package: 8-SO
detail: Current Sensor 40A Channel Hall Effect Bidirectional 8-SOIC (0.154", 3.90mm Width)
