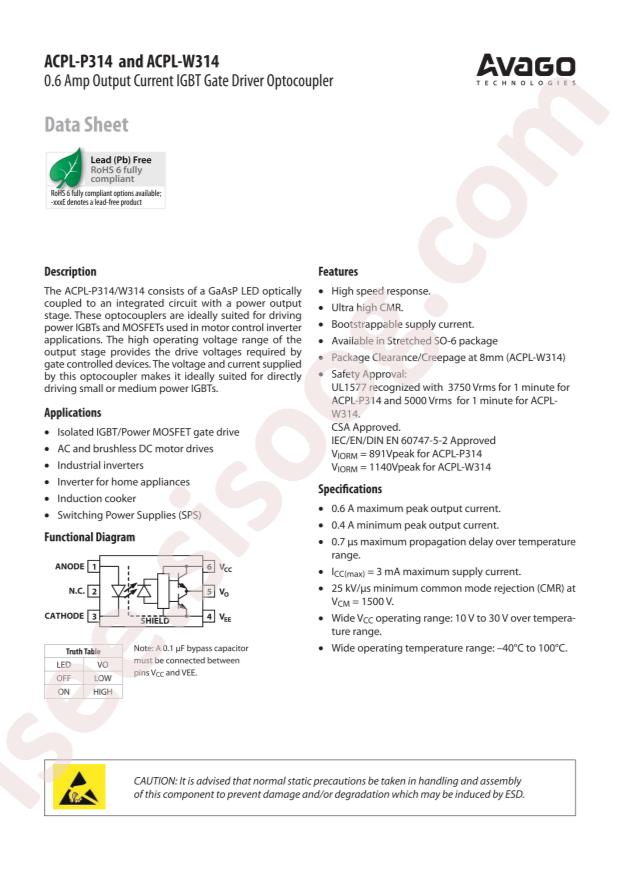

دیتاشیت ACPL-W314-000E
مشخصات دیتاشیت
| نام دیتاشیت |
ACPL-W314-000E
|
| حجم فایل |
71.867
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
14
|
مشخصات
-
RoHS:
true
-
Category:
Optocoupler/LED/Digital Tube/Photoelectric Device/Optocouplers - Logic Output
-
Datasheet:
Broadcom/AVAGO ACPL-W314-000E
-
Input Type:
DC
-
Supply Voltage:
10V~30V
-
Number of Channels:
1
-
Operating Temperature:
-40°C~+100°C
-
Isolation Voltage(rms):
5000V
-
Propagation Delay tpLH/tpHL:
0.7us
-
Common Mode Transient Immunity (CMTI):
25kV/us
-
Package:
SOP-6-6.8mm
-
Manufacturer:
Broadcom/AVAGO
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Technology:
Optical Coupling
-
Voltage - Isolation:
5000Vrms
-
Common Mode Transient Immunity (Min):
25kV/µs
-
Propagation Delay tpLH / tpHL (Max):
700ns, 700ns
-
Pulse Width Distortion (Max):
-
-
Rise / Fall Time (Typ):
50ns, 50ns
-
Current - Output High, Low:
400mA, 400mA
-
Current - Peak Output:
600mA
-
Voltage - Forward (Vf) (Typ):
1.5V
-
Current - DC Forward (If) (Max):
25mA
-
Voltage - Output Supply:
10V ~ 30V
-
Mounting Type:
Surface Mount
-
Package / Case:
6-SOIC (0.295", 7.50mm Width)
-
Supplier Device Package:
6-SO
-
Approval Agency:
CSA, UR
-
detail:
600mA Gate Driver Optical Coupling 5000Vrms 1 Channel 6-SO
