- HCPL-J314-300E

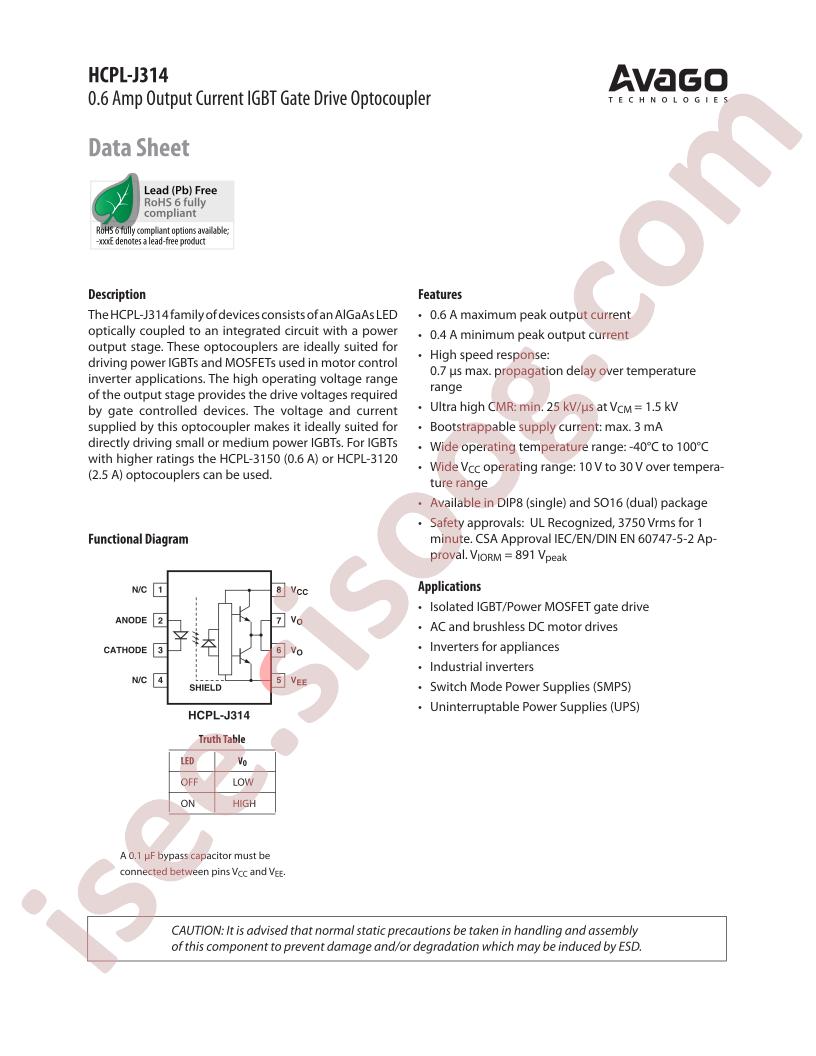

HCPL-J314-300E Datasheet
Datasheet specifications
| Datasheet's name | HCPL-J314-300E |
|---|---|
| File size | 332.753 KB |
| File type | |
| Number of pages | 16 |
Download Datasheet HCPL-J314-300E |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Manufacturer: Broadcom Limited
- Series: -
- Packaging: Tube
- Part Status: Active
- Technology: Optical Coupling
- Number of Channels: 1
- Voltage - Isolation: 3750Vrms
- Common Mode Transient Immunity (Min): 25kV/µs
- Propagation Delay tpLH / tpHL (Max): 700ns, 700ns
- Pulse Width Distortion (Max): -
- Rise / Fall Time (Typ): 50ns, 50ns
- Current - Output High, Low: 400mA, 400mA
- Current - Peak Output: 600mA
- Voltage - Forward (Vf) (Typ): 1.5V
- Current - DC Forward (If) (Max): 25mA
- Voltage - Output Supply: 10V ~ 30V
- Operating Temperature: -40°C ~ 100°C
- Mounting Type: Surface Mount
- Package / Case: 8-SMD, Gull Wing
- Supplier Device Package: 8-DIP Gull Wing
- Approval Agency: CSA, IEC/EN/DIN, UR
- detail: 600mA Gate Driver Optical Coupling 3750Vrms 1 Channel 8-DIP Gull Wing
