- HCPL-5120

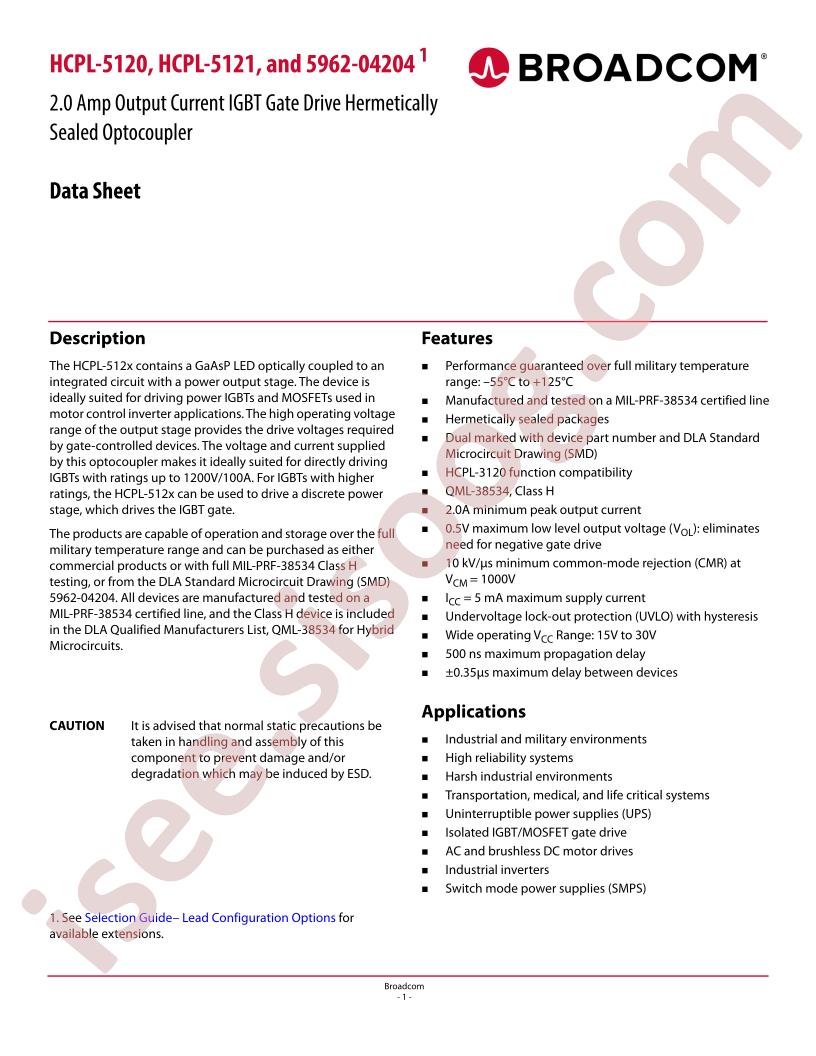

HCPL-5120 Datasheet
Datasheet specifications
| Datasheet's name | HCPL-5120 |
|---|---|
| File size | 1193.859 KB |
| File type | |
| Number of pages | 19 |
Download Datasheet HCPL-5120 |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Manufacturer: Broadcom Limited
- Series: -
- Packaging: Tube
- Part Status: Active
- Technology: Optical Coupling
- Number of Channels: 1
- Voltage - Isolation: 1500VDC
- Common Mode Transient Immunity (Min): 10kV/µs
- Propagation Delay tpLH / tpHL (Max): 500ns, 500ns
- Pulse Width Distortion (Max): 300ns
- Rise / Fall Time (Typ): 100ns, 100ns
- Current - Output High, Low: 2A, 2A
- Current - Peak Output: 2.5A
- Voltage - Forward (Vf) (Typ): 1.5V
- Current - DC Forward (If) (Max): 25mA
- Voltage - Output Supply: 15V ~ 30V
- Operating Temperature: -55°C ~ 125°C
- Mounting Type: Through Hole
- Package / Case: 8-DIP (0.300", 7.62mm)
- Supplier Device Package: 8-DIP
- Approval Agency: -
- detail: 2.5A Gate Driver Optical Coupling 1500VDC 1 Channel 8-DIP
