HSMA-C130 Datasheet

HSMx-C130

Datasheet specifications

Datasheet's name HSMx-C130
File size 123.788 KB
File type pdf
Number of pages 8

Download Datasheet HSMx-C130

Download Datasheet

Other documentations

No other documentation was found!

Technical specifications

  • Manufacturer: Broadcom Limited
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Color: Amber
  • Configuration: Standard
  • Lens Color: White
  • Lens Transparency: Diffused
  • Millicandela Rating: 87mcd
  • Lens Style: Rectangle with Flat Top
  • Lens Size: 1.15mm x 0.80mm
  • Voltage - Forward (Vf) (Typ): 2.05V
  • Current - Test: 20mA
  • Viewing Angle: 110°
  • Mounting Type: Surface Mount
  • Wavelength - Dominant: 589nm
  • Wavelength - Peak: 591nm
  • Features: -
  • Package / Case: 0603 (1608 Metric)
  • Supplier Device Package: 0603
  • Size / Dimension: 1.60mm L x 0.80mm W
  • Height (Max): 0.35mm
  • Base Part Number: HSMA-C130

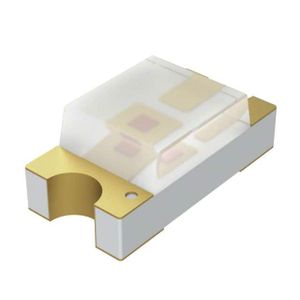

  • detail: Amber 589nm LED Indication - Discrete 2.05V 0603 (1608 Metric)
