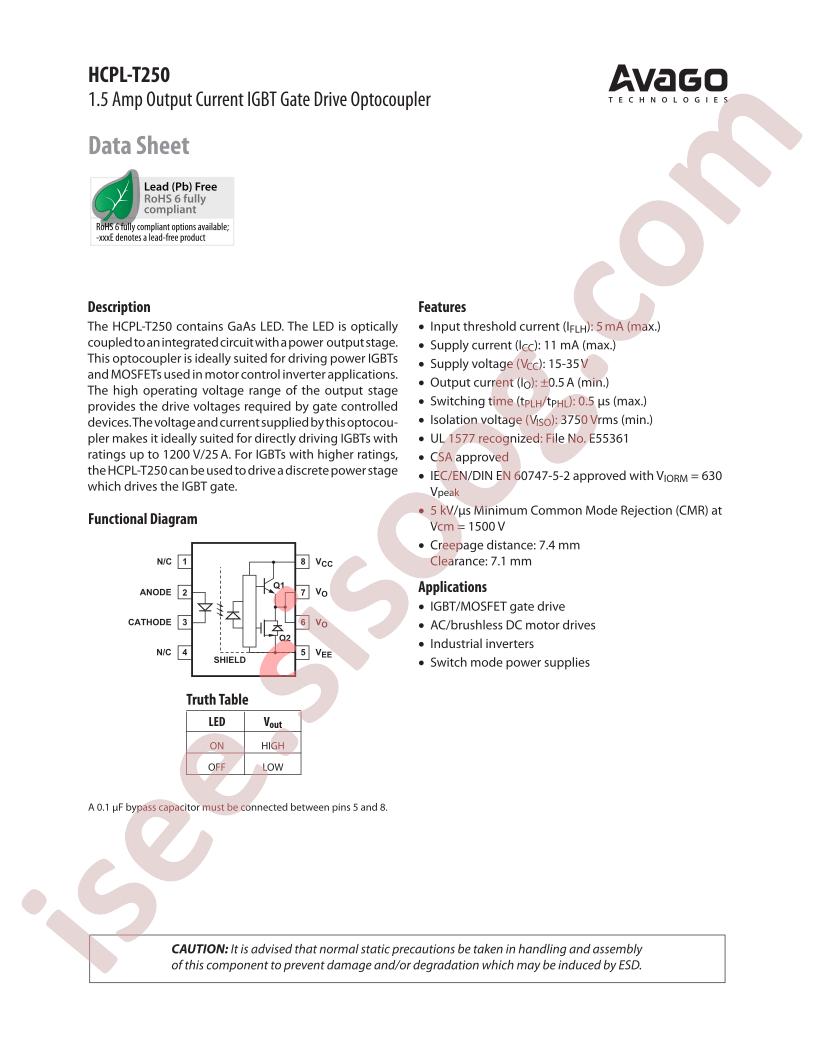

دیتاشیت HCPL-T250-360E
مشخصات دیتاشیت
| نام دیتاشیت |
HCPL-T250-360E
|
| حجم فایل |
252.958
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
7
|
مشخصات
-
Manufacturer:
Broadcom Limited
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Technology:
Optical Coupling
-
Number of Channels:
1
-
Voltage - Isolation:
3750Vrms
-
Common Mode Transient Immunity (Min):
5kV/µs
-
Propagation Delay tpLH / tpHL (Max):
500ns, 500ns
-
Pulse Width Distortion (Max):
-
-
Rise / Fall Time (Typ):
-
-
Current - Output High, Low:
500mA, 500mA
-
Current - Peak Output:
1.5A
-
Voltage - Forward (Vf) (Typ):
1.6V
-
Current - DC Forward (If) (Max):
20mA
-
Voltage - Output Supply:
15V ~ 30V
-
Operating Temperature:
-20°C ~ 85°C
-
Mounting Type:
Surface Mount
-
Package / Case:
8-SMD, Gull Wing
-
Supplier Device Package:
8-DIP Gull Wing
-
Approval Agency:
CSA, IEC/EN/DIN, UR
-
detail:
1.5A Gate Driver Optical Coupling 3750Vrms 1 Channel 8-DIP Gull Wing
