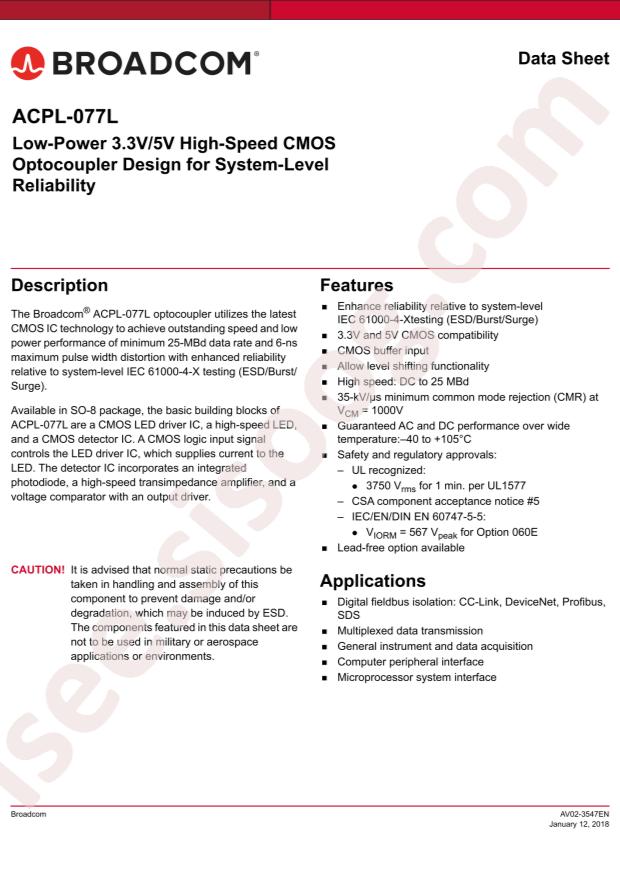

دیتاشیت ACPL-077L-500E
مشخصات دیتاشیت
| نام دیتاشیت |
ACPL-077L-500E
|
| حجم فایل |
82.961
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
10
|
مشخصات
-
RoHS:
true
-
Category:
Optocoupler/LED/Digital Tube/Photoelectric Device/Optocouplers - Logic Output
-
Data Rate:
25Mbit/s
-
Datasheet:
Broadcom/AVAGO ACPL-077L-500E
-
Input Type:
High Speed
-
Supply Voltage:
3V~3.6V;4.5V~5.5V
-
Number of Channels:
1
-
Operating Temperature:
-40°C~+105°C
-
Isolation Voltage(rms):
3750V
-
Propagation Delay tpLH/tpHL:
40ns
-
Common Mode Transient Immunity (CMTI):
35kV/us
-
Package:
SOP-8
-
Manufacturer:
Broadcom/AVAGO
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
Inputs - Side 1/Side 2:
1/0
-
Voltage - Isolation:
3750Vrms
-
Common Mode Transient Immunity (Min):
35kV/µs
-
Output Type:
Push-Pull, Totem Pole
-
Current - Output / Channel:
10mA
-
Propagation Delay tpLH / tpHL (Max):
40ns, 40ns
-
Rise / Fall Time (Typ):
4ns, 3ns
-
Voltage - Forward (Vf) (Typ):
-
-
Current - DC Forward (If) (Max):
-
-
Voltage - Supply:
3V ~ 3.6V, 4.5V ~ 5.5V
-
Mounting Type:
Surface Mount
-
Package / Case:
8-SOIC (0.154", 3.90mm Width)
-
Supplier Device Package:
8-SO
-
detail:
Logic Output Optoisolator 25MBd Push-Pull, Totem Pole 3750Vrms 1 Channel 35kV/µs CMTI 8-SO
