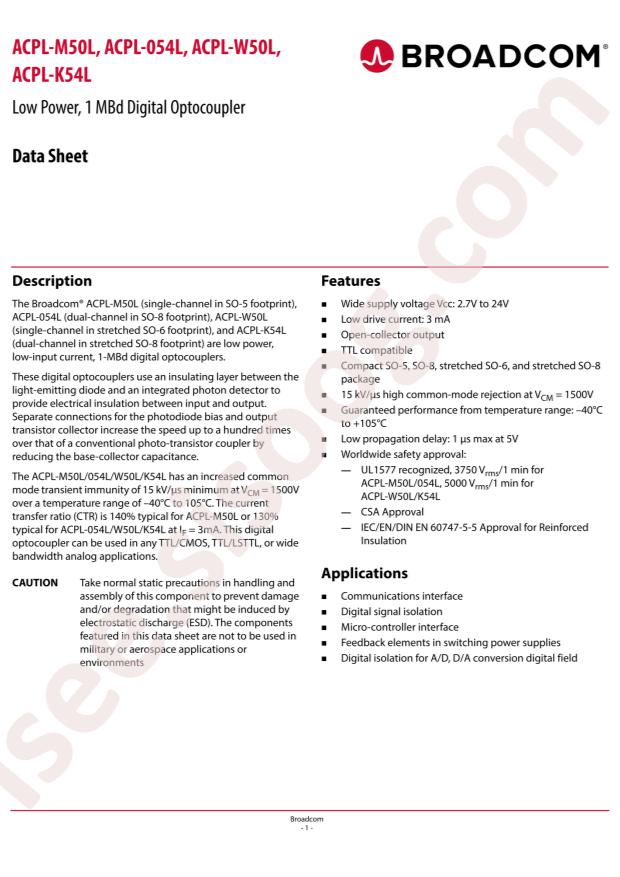

دیتاشیت ACPL-054L-560E
مشخصات دیتاشیت
| نام دیتاشیت |
ACPL-054L-560E
|
| حجم فایل |
81.522
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
19
|
مشخصات
-
RoHS:
true
-
Category:
Optocoupler/LED/Digital Tube/Photoelectric Device/Optocouplers - Logic Output
-
Data Rate:
-
-
Datasheet:
Broadcom/AVAGO ACPL-054L-560E
-
Input Type:
DC
-
Supply Voltage:
2.7V~24V
-
Number of Channels:
2
-
Operating Temperature:
-40°C~+105°C
-
Isolation Voltage(rms):
5000V
-
Propagation Delay tpLH/tpHL:
800ns;500ns
-
Common Mode Transient Immunity (CMTI):
15kV/us
-
Package:
SO-8
-
Manufacturer:
Broadcom/AVAGO
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
Voltage - Isolation:
3750Vrms
-
Current Transfer Ratio (Min):
93% @ 3mA
-
Current Transfer Ratio (Max):
200% @ 3mA
-
Turn On / Turn Off Time (Typ):
200ns, 380ns
-
Rise / Fall Time (Typ):
-
-
Output Type:
Transistor
-
Voltage - Output (Max):
24V
-
Current - Output / Channel:
8mA
-
Voltage - Forward (Vf) (Typ):
1.5V
-
Current - DC Forward (If) (Max):
20mA
-
Vce Saturation (Max):
-
-
Mounting Type:
Surface Mount
-
Package / Case:
8-SOIC (0.154", 3.90mm Width)
-
Supplier Device Package:
8-SO
-
detail:
Optoisolator Transistor Output 3750Vrms 2 Channel 8-SO
