- HCPL-7710-020E

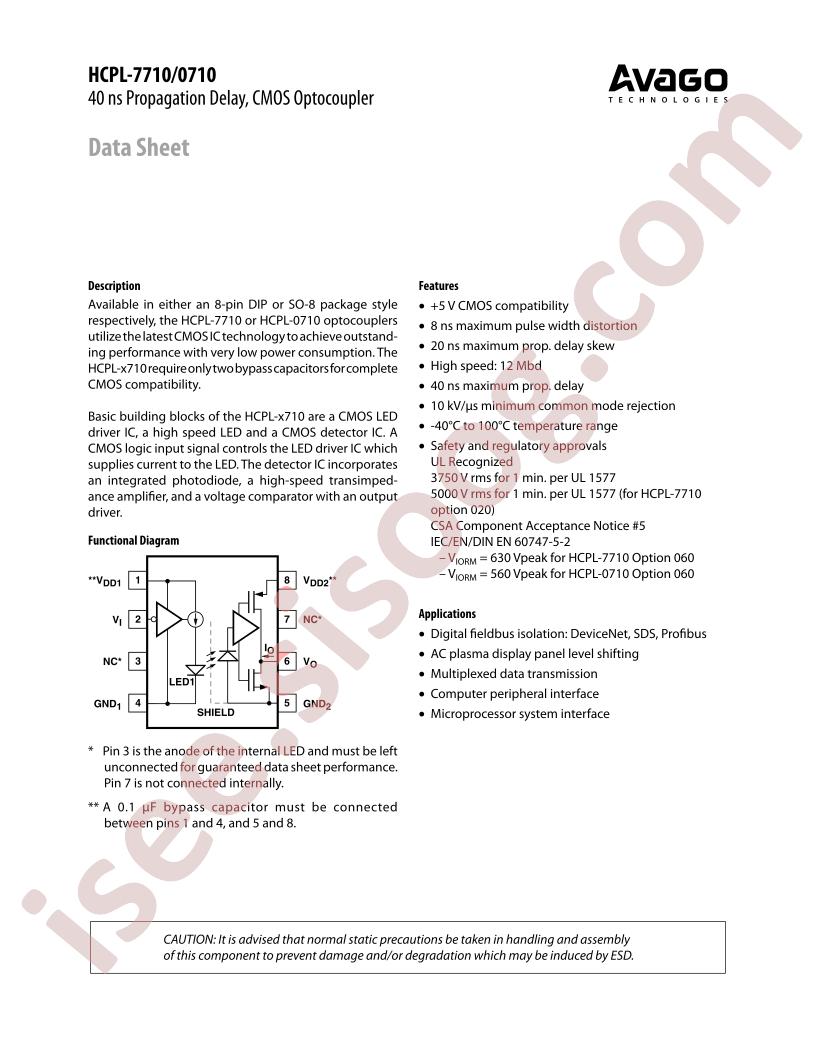

HCPL-7710-020E Datasheet
Datasheet specifications
| Datasheet's name | HCPL-7710-020E |
|---|---|
| File size | 313.069 KB |
| File type | |
| Number of pages | 18 |
Download Datasheet HCPL-7710-020E |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Manufacturer: Broadcom Limited
- Series: -
- Packaging: Tube
- Part Status: Discontinued at Digi-Key
- Number of Channels: 1
- Inputs - Side 1/Side 2: 1/0
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 10kV/µs
- Input Type: Logic
- Output Type: Push-Pull, Totem Pole
- Current - Output / Channel: 10mA
- Data Rate: 12.5MBd
- Propagation Delay tpLH / tpHL (Max): 40ns, 40ns
- Rise / Fall Time (Typ): 13ns, 5ns
- Voltage - Forward (Vf) (Typ): -
- Current - DC Forward (If) (Max): -
- Voltage - Supply: 4.5V ~ 5.5V
- Operating Temperature: -40°C ~ 100°C
- Mounting Type: Through Hole
- Package / Case: 8-DIP (0.300", 7.62mm)
- Supplier Device Package: 8-DIP
- detail: Logic Output Optoisolator 12.5MBd Push-Pull, Totem Pole 5000Vrms 1 Channel 10kV/µs CMTI 8-DIP
