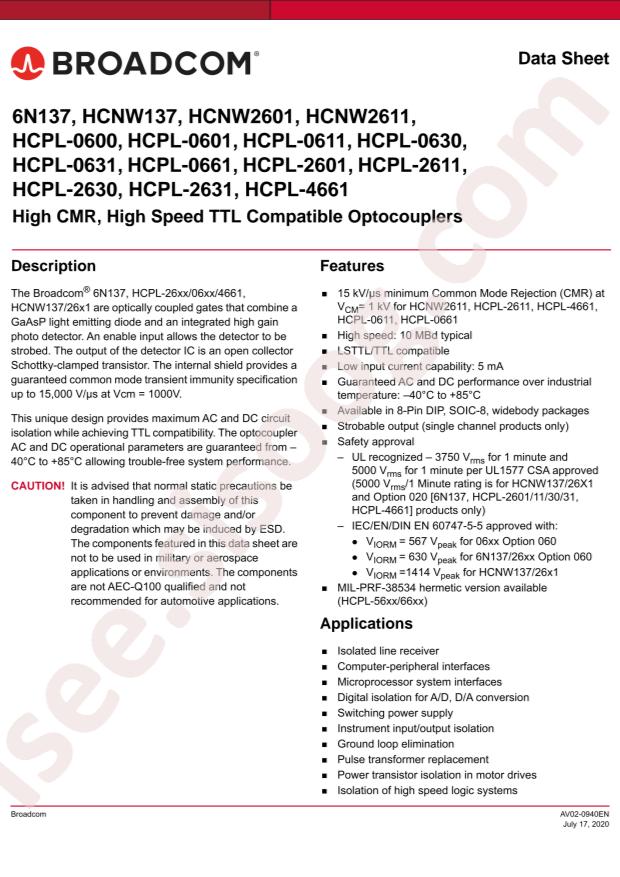

دیتاشیت HCPL-4661-000E
مشخصات دیتاشیت
| نام دیتاشیت |
HCPL-4661-000E
|
| حجم فایل |
108.979
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
30
|
مشخصات
-
RoHS:
true
-
Category:
Optocoupler/LED/Digital Tube/Photoelectric Device/Optocouplers - Logic Output
-
Data Rate:
10Mbit/s
-
Datasheet:
Broadcom/AVAGO HCPL-4661-000E
-
Input Type:
DC
-
Supply Voltage:
4.5V~5.5V
-
Number of Channels:
2
-
Operating Temperature:
-40°C~+85°C
-
Isolation Voltage(rms):
5000V
-
Propagation Delay tpLH/tpHL:
100ns
-
Common Mode Transient Immunity (CMTI):
15kV/us
-
Package:
DIP-8
-
Manufacturer:
Broadcom/AVAGO
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Inputs - Side 1/Side 2:
2/0
-
Voltage - Isolation:
3750Vrms
-
Common Mode Transient Immunity (Min):
15kV/µs
-
Output Type:
Open Collector, Schottky Clamped
-
Current - Output / Channel:
50mA
-
Propagation Delay tpLH / tpHL (Max):
100ns, 100ns
-
Rise / Fall Time (Typ):
24ns, 10ns
-
Voltage - Forward (Vf) (Typ):
1.5V
-
Current - DC Forward (If) (Max):
15mA
-
Voltage - Supply:
4.5V ~ 5.5V
-
Mounting Type:
Through Hole
-
Package / Case:
8-DIP (0.300", 7.62mm)
-
Supplier Device Package:
8-DIP
-
detail:
Logic Output Optoisolator 10MBd Open Collector, Schottky Clamped 3750Vrms 2 Channel 15kV/µs CMTI 8-DIP
