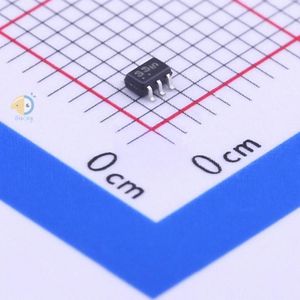

MUN5333DW1T1G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
MUN5333DW1T1G
|
|
حجم فایل
|
95.519
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
10
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Digital Transistors
-
Datasheet:

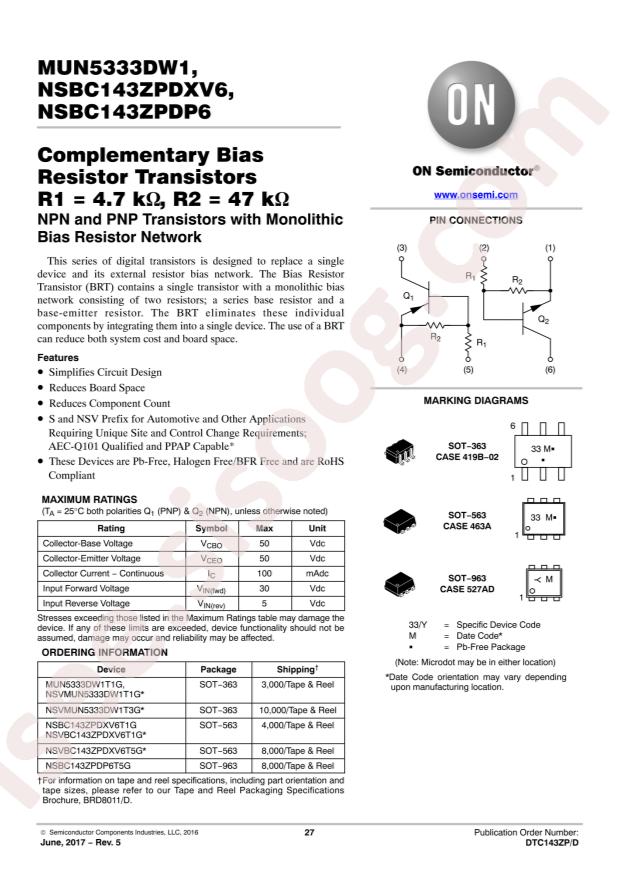

onsemi MUN5333DW1T1G
-
Transistor Type:
1 NPN,1 PNP - Pre-Biased
-
Collector Current (Ic):
100mA
-
Power Dissipation (Pd):
250mW
-
DC Current Gain (hFE@Ic,Vce):
80@5mA,10V
-
Collector Cut-Off Current (Icbo):
500nA
-
Collector-Emitter Breakdown Voltage (Vceo):
50V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
250mV@1mA,10mA
-
Package:
SOT-323-6
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Obsolete
-
Current - Collector (Ic) (Max):
100mA
-
Voltage - Collector Emitter Breakdown (Max):
50V
-
Resistor - Base (R1):
4.7kOhms
-
Resistor - Emitter Base (R2):
47kOhms
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
80 @ 5mA, 10V
-
Vce Saturation (Max) @ Ib, Ic:
250mV @ 1mA, 10mA
-
Current - Collector Cutoff (Max):
500nA
-
Frequency - Transition:
-
-
Power - Max:
250mW
-
Mounting Type:
Surface Mount
-
Package / Case:
6-TSSOP, SC-88, SOT-363
-
Supplier Device Package:
SC-88/SC70-6/SOT-363
-
Base Part Number:
MUN53
-
detail:
Pre-Biased Bipolar Transistor (BJT) 1 NPN, 1 PNP - Pre-Biased (Dual) 50V 100mA 250mW Surface Mount SC-88/SC70-6/SOT-363
