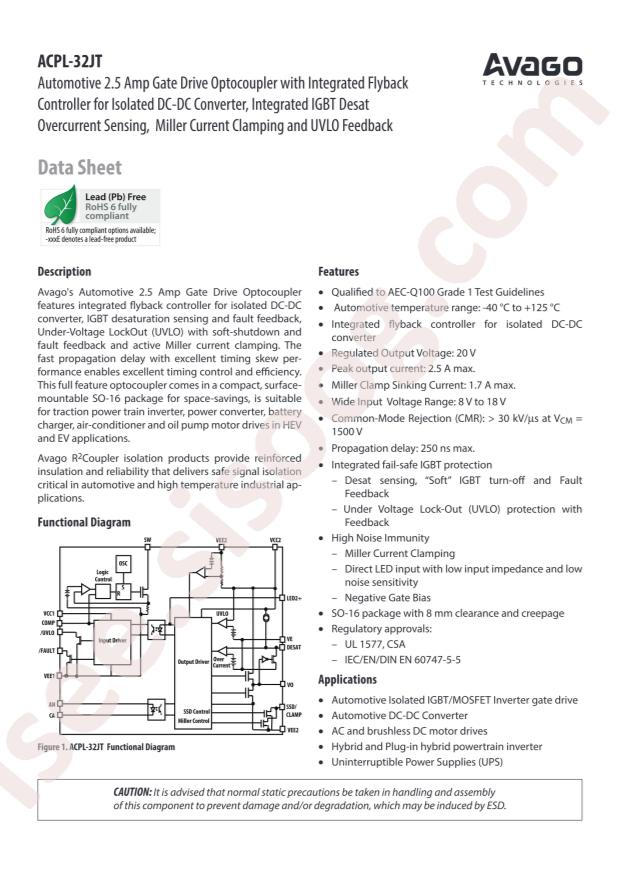

دیتاشیت ACPL-32JT-500E
مشخصات دیتاشیت
| نام دیتاشیت |
ACPL-32JT-500E
|
| حجم فایل |
88.936
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
18
|
مشخصات
-
RoHS:
true
-
Feature:
-
-
Category:
Power Supply Chip/Gate Drive ICs
-
Datasheet:
Broadcom/AVAGO ACPL-32JT-500E
-
Fall Time:
35ns
-
Load Type:
-
-
Rise Time:
70ns
-
Supply Voltage:
8V~18V
-
Number of Drivers:
1
-
Driven Configuration:
-
-
Operating Temperature:
-40°C~+125°C@(Ta)
-
Whether the isolation:
Isolation
-
Propagation Delay tpHL:
160ns
-
Propagation Delay tpLH:
120ns
-
Peak Output Current(sink):
2.5A
-
Peak Output Current(source):
2.5A
-
Package:
SO-16-300mil
-
Manufacturer:
Broadcom/AVAGO
-
Series:
Automotive, AEC-Q100, R²Coupler™
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
Technology:
Optical Coupling
-
Number of Channels:
1
-
Voltage - Isolation:
5000Vrms
-
Common Mode Transient Immunity (Min):
30kV/µs
-
Propagation Delay tpLH / tpHL (Max):
250ns, 250ns
-
Pulse Width Distortion (Max):
140ns
-
Rise / Fall Time (Typ):
70ns, 35ns
-
Current - Output High, Low:
750mA, 1A
-
Current - Peak Output:
2.5A
-
Voltage - Forward (Vf) (Typ):
1.55V
-
Current - DC Forward (If) (Max):
20mA
-
Voltage - Output Supply:
18V ~ 22V
-
Mounting Type:
Surface Mount
-
Package / Case:
16-SOIC (0.295", 7.50mm Width)
-
Supplier Device Package:
16-SOIC
-
Approval Agency:
CSA, IEC/EN/DIN, UR
-
detail:
2.5A Gate Driver Optical Coupling 5000Vrms 1 Channel 16-SOIC
