- دیتاشیت MJL21193G

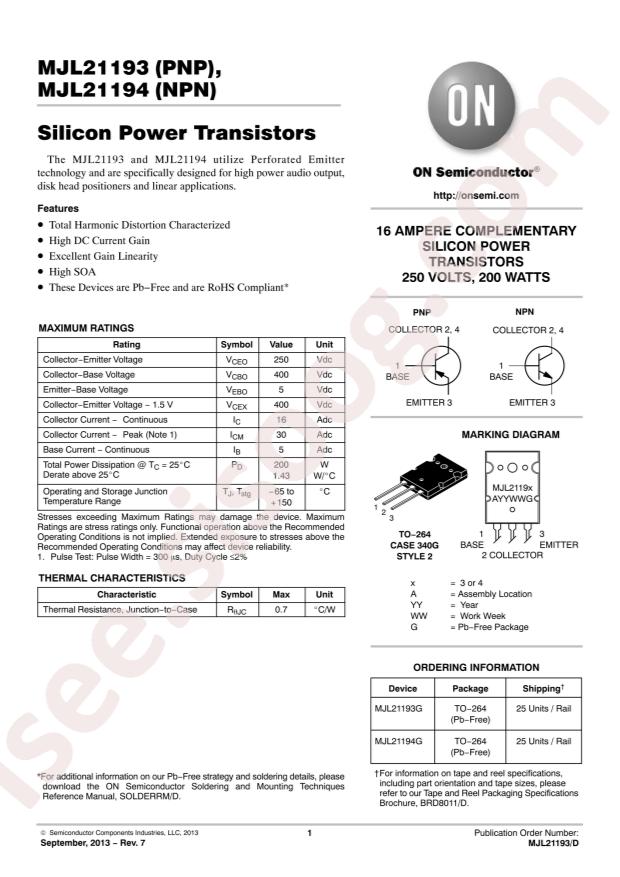

MJL21193G دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | MJL21193G |
|---|---|
| حجم فایل | 89.217 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 6 |
دانلود دیتاشیت MJL21193G |
دانلود دیتاشیت |
|---|
سایر مستندات
MJL21193, 94 6 pages
MJL21193G 6 pages
مشخصات فنی
- RoHS: true
- Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
- Datasheet: onsemi MJL21193G
- Transistor Type: PNP
- Operating Temperature: -65°C~+150°C@(Tj)
- Collector Current (Ic): 16A
- Power Dissipation (Pd): 200W
- Transition Frequency (fT): 4MHz
- DC Current Gain (hFE@Ic,Vce): 25@8A,5V
- Collector Cut-Off Current (Icbo): 100uA
- Collector-Emitter Breakdown Voltage (Vceo): 250V
- Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 4V@16A,3.2A
- Package: TO-264-3
- Manufacturer: onsemi
- Series: -
- Packaging: Tube
- Part Status: Active
- Current - Collector (Ic) (Max): 16A
- Voltage - Collector Emitter Breakdown (Max): 250V
- Vce Saturation (Max) @ Ib, Ic: 4V @ 3.2A, 16A
- Current - Collector Cutoff (Max): 100µA
- DC Current Gain (hFE) (Min) @ Ic, Vce: 25 @ 8A, 5V
- Power - Max: 200W
- Frequency - Transition: 4MHz
- Mounting Type: Through Hole
- Package / Case: TO-264-3, TO-264AA
- Supplier Device Package: TO-264
- Base Part Number: MJL21
- detail: Bipolar (BJT) Transistor PNP 250V 16A 4MHz 200W Through Hole TO-264
