UMC3NT1G دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت UMC3NT1G	دانلود دیتاشیت

RoHS: true
Category: Triode/MOS Tube/Transistor/Digital Transistors

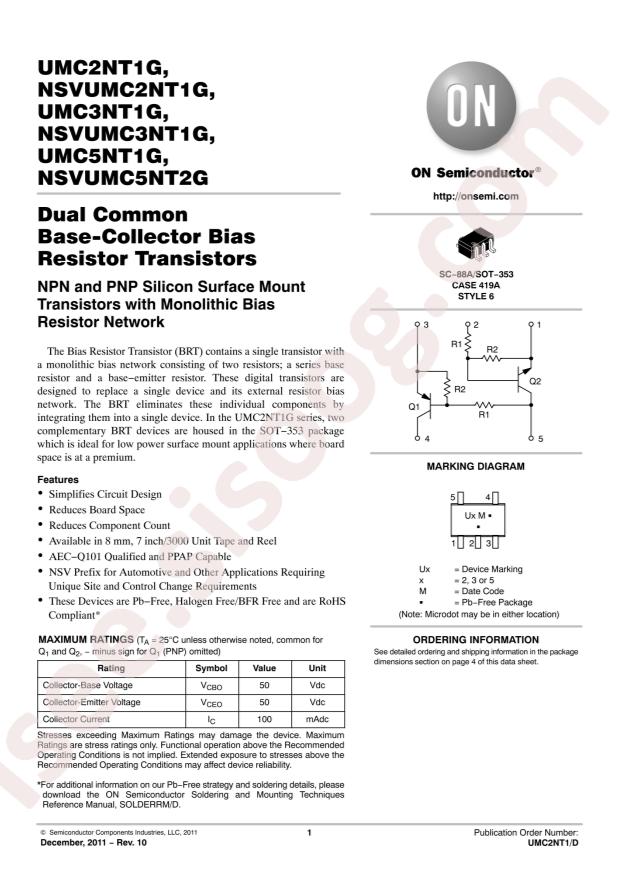

Datasheet: onsemi UMC3NT1G
Transistor Type: 1 NPN - Pre-Biased,1 PNP - Pre-Biased
Collector Current (Ic): 100mA
Power Dissipation (Pd): 150mW
DC Current Gain (hFE@Ic,Vce): 35@5mA,10V
Collector Cut-Off Current (Icbo): 500nA
Collector-Emitter Breakdown Voltage (Vceo): 50V
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 250mV@300uA,10mA
Package: SOT-353
Manufacturer: onsemi
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Current - Collector (Ic) (Max): 100mA
Voltage - Collector Emitter Breakdown (Max): 50V
Resistor - Base (R1): 10kOhms
Resistor - Emitter Base (R2): 10kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce: 35 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic: 250mV @ 300µA, 10mA
Current - Collector Cutoff (Max): 500nA
Frequency - Transition: -
Power - Max: 150mW
Mounting Type: Surface Mount
Package / Case: 5-TSSOP, SC-70-5, SOT-353
Supplier Device Package: SC-88A (SC-70-5/SOT-353)
Base Part Number: MC3
detail: Pre-Biased Bipolar Transistor (BJT) 1 NPN, 1 PNP - Pre-Biased (Dual) 50V 100mA 150mW Surface Mount SC-88A (SC-70-5/SOT-353)
