RoHS: true
Category: Diodes/Schottky Barrier Diodes (SBD)
Datasheet: onsemi SBAT54AWT1G
Diode Configuration: 1 Pair Common Anode
Reverse Voltage (Vr): 30V
Forward Voltage (Vf@If): 800mV@100mA
Reverse Leakage Current (Ir): 2uA@25V
Average Rectified Current (Io): 200mA

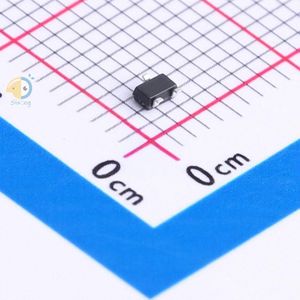

Package: SC-70-3
Manufacturer: onsemi
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Diode Type: Schottky
Voltage - DC Reverse (Vr) (Max): 30V
Current - Average Rectified (Io) (per Diode): 200mA (DC)
Voltage - Forward (Vf) (Max) @ If: 800mV @ 100mA
Speed: Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr): 5ns
Current - Reverse Leakage @ Vr: 2µA @ 25V
Operating Temperature - Junction: -55°C ~ 125°C
Mounting Type: Surface Mount
Package / Case: SC-70, SOT-323
Supplier Device Package: SOT-323
Base Part Number: SBAT54
detail: Diode Array 1 Pair Common Anode Schottky 30V 200mA (DC) Surface Mount SC-70, SOT-323
