- HCPL-5501

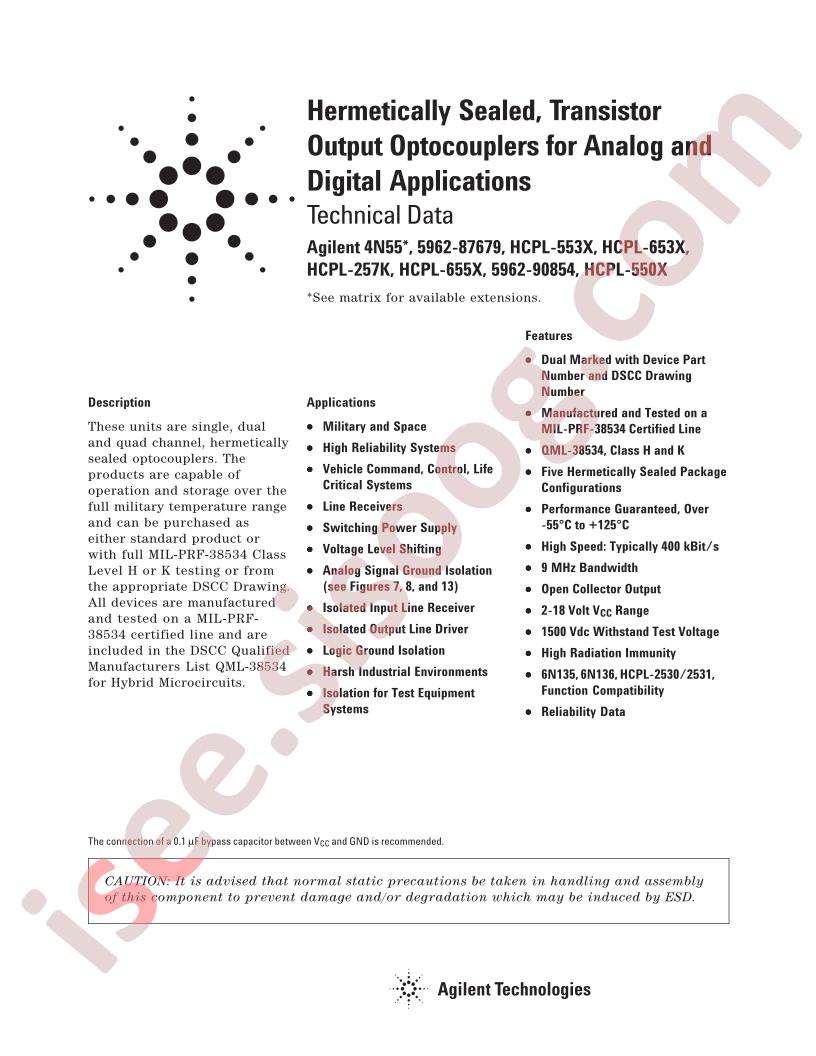

HCPL-5501 Datasheet
Datasheet specifications
| Datasheet's name | HCPL-5501 |
|---|---|
| File size | 200.211 KB |
| File type | |
| Number of pages | 14 |
Download Datasheet HCPL-5501 |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Manufacturer: Broadcom Limited
- Series: -
- Packaging: Bulk
- Part Status: Active
- Number of Channels: 1
- Voltage - Isolation: 1500VDC
- Current Transfer Ratio (Min): 9% @ 16mA
- Current Transfer Ratio (Max): -
- Turn On / Turn Off Time (Typ): 400ns, 1µs
- Rise / Fall Time (Typ): -
- Input Type: DC
- Output Type: Transistor with Base
- Voltage - Output (Max): 20V
- Current - Output / Channel: 8mA
- Voltage - Forward (Vf) (Typ): 1.55V
- Current - DC Forward (If) (Max): 20mA
- Vce Saturation (Max): -
- Operating Temperature: -55°C ~ 125°C
- Mounting Type: Through Hole
- Package / Case: 8-DIP (0.300", 7.62mm)
- Supplier Device Package: 8-DIP
- detail: Optoisolator Transistor with Base Output 1500VDC 1 Channel 8-DIP
