ACSL-6210-00R Datasheet

ACSL-6xx0

Datasheet specifications

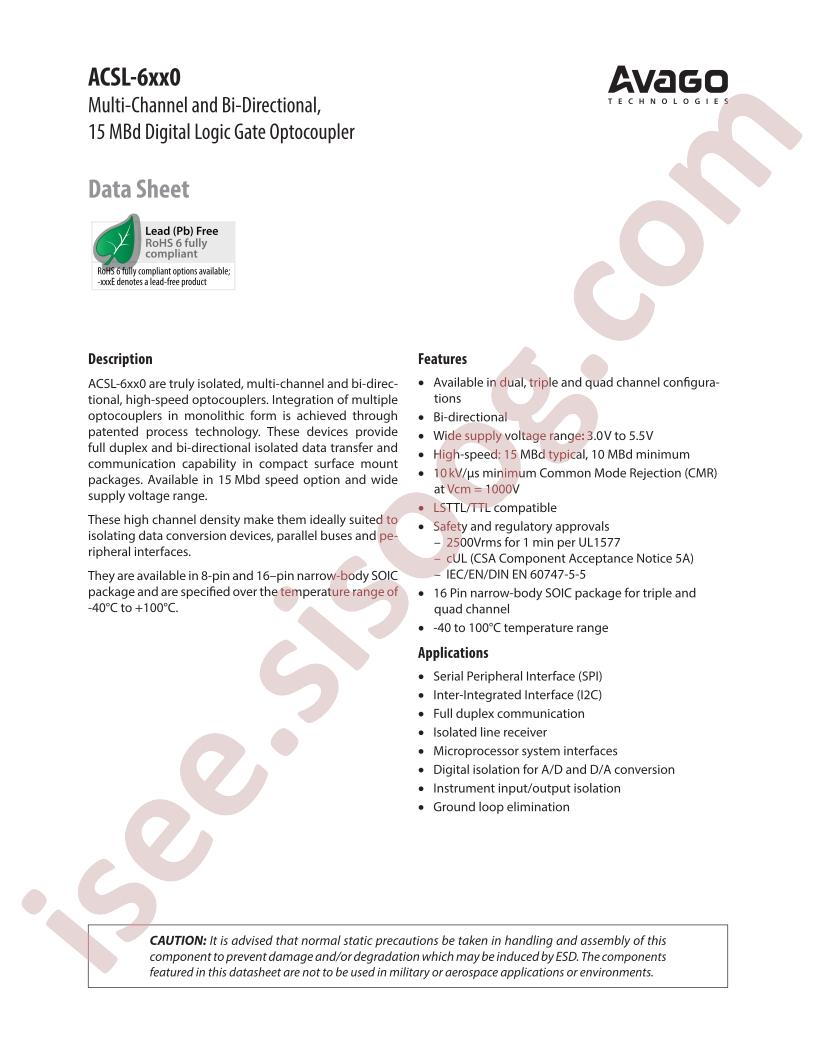

Datasheet's name ACSL-6xx0
File size 507.038 KB
File type pdf
Number of pages 17

Download Datasheet ACSL-6xx0

Download Datasheet

Other documentations

No other documentation was found!

Technical specifications

  • Manufacturer: Broadcom Limited
  • Series: -
  • Packaging: Tube
  • Part Status: Obsolete
  • Number of Channels: 2
  • Inputs - Side 1/Side 2: 1/1
  • Voltage - Isolation: 2500Vrms
  • Common Mode Transient Immunity (Min): 10kV/µs
  • Input Type: DC
  • Output Type: Open Collector, Schottky Clamped
  • Current - Output / Channel: 50mA
  • Data Rate: 15MBd
  • Propagation Delay tpLH / tpHL (Max): 100ns, 100ns
  • Rise / Fall Time (Typ): 30ns, 12ns
  • Voltage - Forward (Vf) (Typ): 1.52V
  • Current - DC Forward (If) (Max): 15mA
  • Voltage - Supply: 3V ~ 5.5V
  • Operating Temperature: -40°C ~ 100°C
  • Mounting Type: Surface Mount
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SO
  • detail: Logic Output Optoisolator 15MBd Open Collector, Schottky Clamped 2500Vrms 2 Channel 10kV/µs CMTI 8-SO
