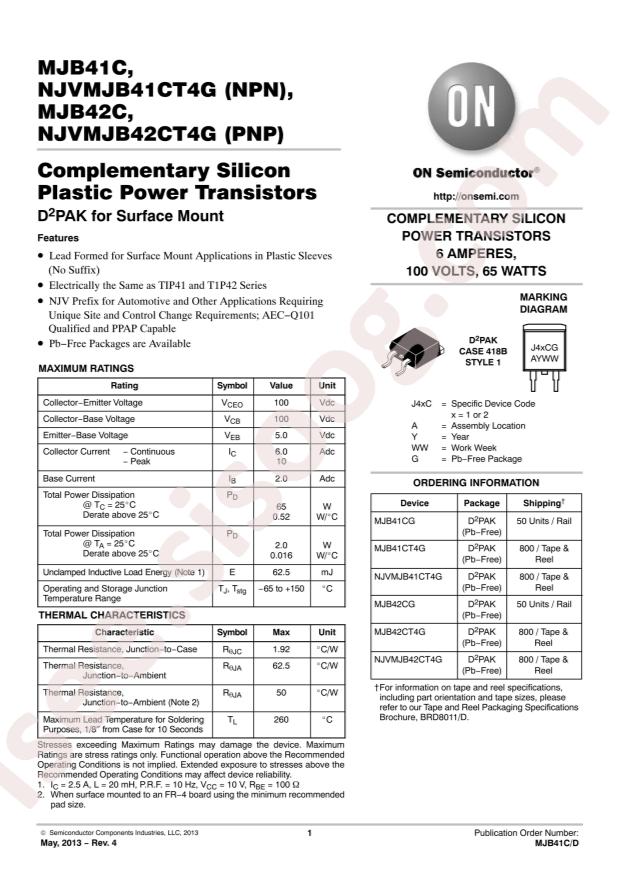

NJVMJB42CT4G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NJVMJB42CT4G
|
|
حجم فایل
|
100.179
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
7
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
onsemi NJVMJB42CT4G
-
Transistor Type:
PNP
-
Operating Temperature:
-65°C~+150°C@(Tj)
-
Collector Current (Ic):
6A
-
Power Dissipation (Pd):
2W
-
Transition Frequency (fT):
3MHz
-
DC Current Gain (hFE@Ic,Vce):
15@3A,4V
-
Collector Cut-Off Current (Icbo):
700uA
-
Collector-Emitter Breakdown Voltage (Vceo):
100V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
1.5V@600mA,6A
-
Package:
D2PAK
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Current - Collector (Ic) (Max):
6A
-
Voltage - Collector Emitter Breakdown (Max):
100V
-
Vce Saturation (Max) @ Ib, Ic:
1.5V @ 600mA, 6A
-
Current - Collector Cutoff (Max):
700µA
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
15 @ 3A, 4V
-
Power - Max:
2W
-
Frequency - Transition:
3MHz
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
-
Supplier Device Package:
D2PAK
-
Base Part Number:
MJB42
-
detail:
Bipolar (BJT) Transistor PNP 100V 6A 3MHz 2W Surface Mount D2PAK
