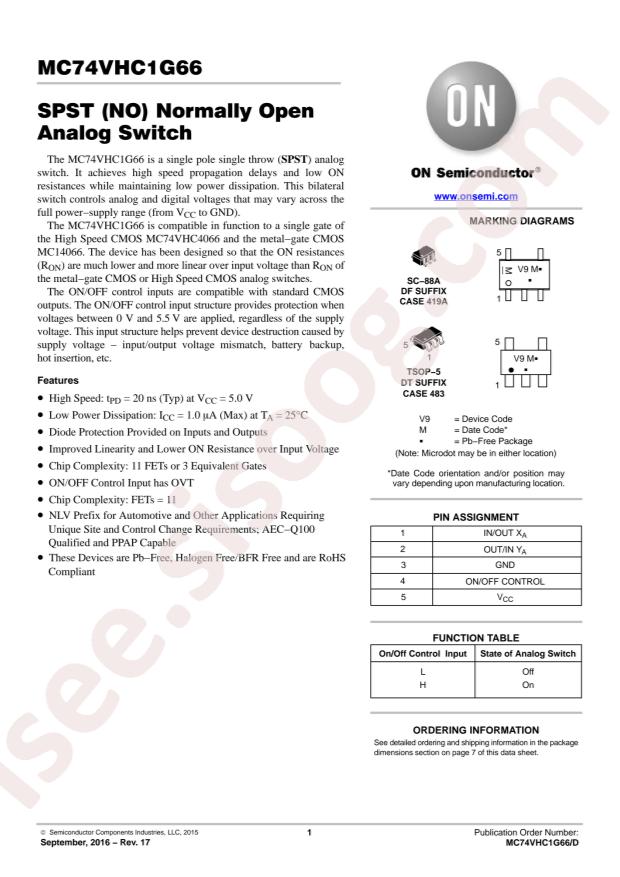

- دیتاشیت MC74VHC1G66DFT2G
MC74VHC1G66DFT2G دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | MC74VHC1G66DFT2G |
|---|---|
| حجم فایل | 83.755 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 9 |
دانلود دیتاشیت MC74VHC1G66DFT2G |
دانلود دیتاشیت |
|---|
سایر مستندات
MC74 (NL) VHC1G66 9 pages
مشخصات فنی
- RoHS: true
- Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
- Datasheet: onsemi MC74VHC1G66DFT2G
- Supply Voltage: 2V~5.5V
- Switch Circuit: SPST(SPST)-Normal Open
- Number of Channels: 1
- On-State Resistance (Max): 40Ω
- Package: SOT-353
- Manufacturer: onsemi
- Series: -
- Packaging: Tape & Reel (TR)
- Part Status: Obsolete
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 1
- Channel-to-Channel Matching (ΔRon): -
- Voltage - Supply, Single (V+): 2V ~ 5.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): -
- -3db Bandwidth: 180MHz
- Charge Injection: -
- Channel Capacitance (CS(off), CD(off)): 10pF
- Current - Leakage (IS(off)) (Max): 100nA
- Crosstalk: -
- Operating Temperature: -55°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 5-TSSOP, SC-70-5, SOT-353
- Supplier Device Package: SC-88A (SC-70-5/SOT-353)
- Base Part Number: MC74VHC1G66
- detail: 1 Circuit IC Switch 1:1 40Ohm SC-88A (SC-70-5/SOT-353)
