دیتاشیت RURG8060-F085

RURG8060-F085

مشخصات دیتاشیت

نام دیتاشیت RURG8060-F085
حجم فایل 2471.991 کیلوبایت
نوع فایل pdf
تعداد صفحات 7

دانلود دیتاشیت RURG8060-F085

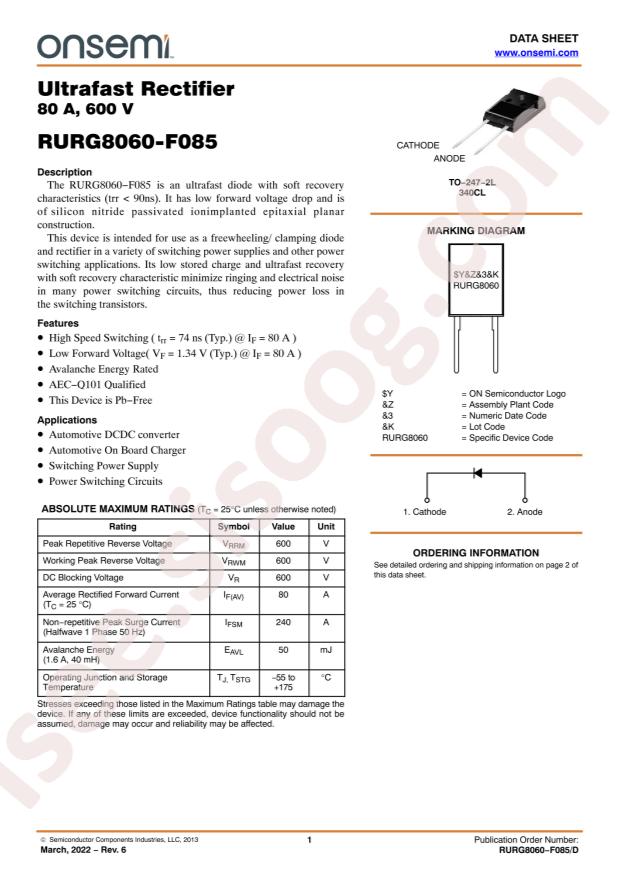

RURG8060-F085 Datasheet

مشخصات

  • RoHS: true
  • Category: Diodes/Diodes - General Purpose
  • Datasheet: onsemi RURG8060-F085
  • Diode Configuration: Single
  • Reverse Voltage (Vr): 600V
  • Forward Voltage (Vf@If): 1.34V@80A
  • Reverse Leakage Current: 250uA@600V
  • Average Rectified Current (Io): 80A
  • Package: TO-247
  • Manufacturer: onsemi
  • Series: Automotive, AEC-Q101
  • Packaging: Tube
  • Part Status: Active
  • Diode Type: Standard
  • Voltage - DC Reverse (Vr) (Max): 600V
  • Current - Average Rectified (Io): 80A
  • Voltage - Forward (Vf) (Max) @ If: 1.6V @ 80A
  • Speed: Fast Recovery =< 500ns, > 200mA (Io)
  • Reverse Recovery Time (trr): 90ns
  • Current - Reverse Leakage @ Vr: 250µA @ 600V
  • Capacitance @ Vr, F: -
  • Mounting Type: Through Hole
  • Package / Case: TO-247-2
  • Supplier Device Package: TO-247-2
  • Operating Temperature - Junction: -55°C ~ 175°C
  • Base Part Number: RURG80
  • detail: Diode Standard 600V 80A Through Hole TO-247-2
