دیتاشیت LF356N/NOPB
مشخصات دیتاشیت
| نام دیتاشیت | LF155-56, LF256-57, LF355-57 |
|---|---|
| حجم فایل | 2604.181 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 45 |
دانلود دیتاشیت LF155-56, LF256-57, LF355-57 |

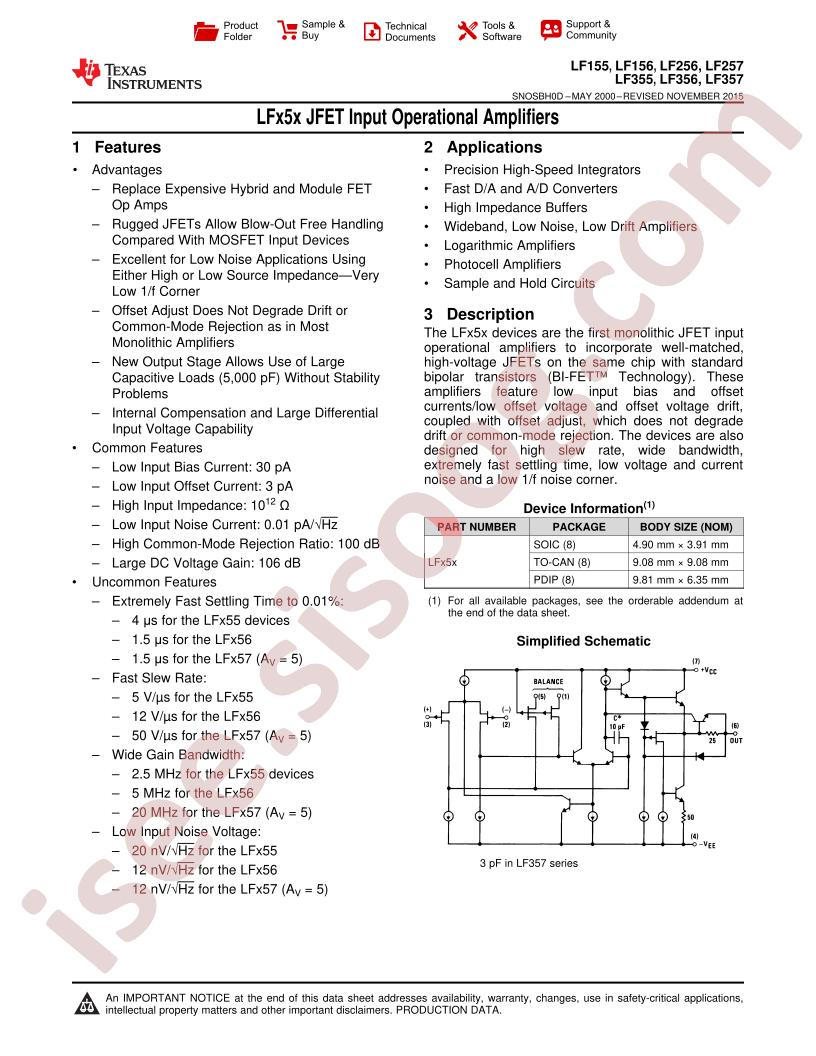

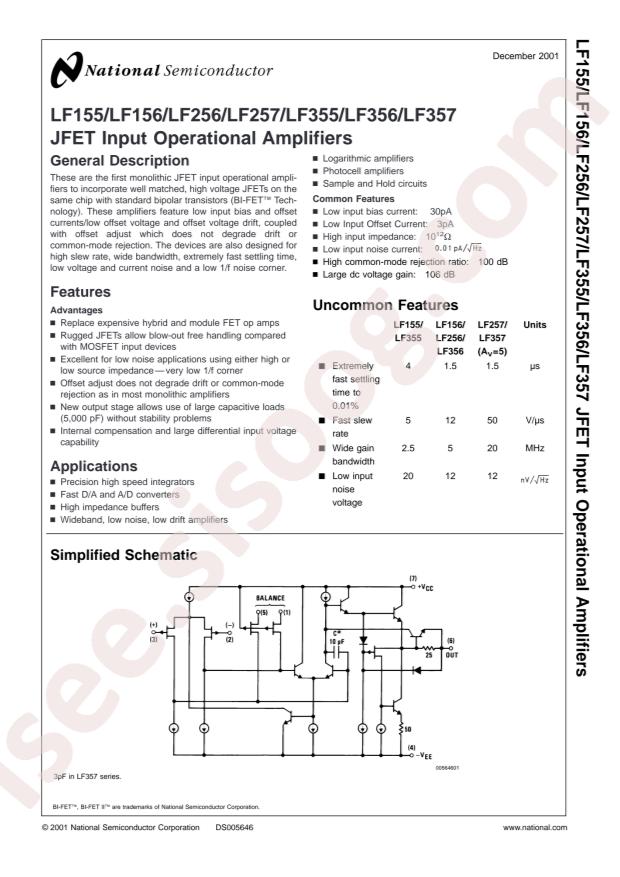

LF155-56, LF256-57, LF355-57 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Operational Amplifier/Comparator/FET InputAmplifiers
- Datasheet: Texas Instruments LF356N/NOPB
- Number of Circuits: 1
- Operating Temperature: 0°C~+70°C
- Current - Input Bias(Ib): 30pA
- Supply Current Per Channel: 5mA
- Gain Bandwidth Product(GBP): 5MHz
- Voltage - Input Offset(Vos): 3mV
- Package: DIP-8
- Manufacturer: Texas Instruments
- Gain Bandwidth Product: 5MHz
- Current - Input Bias: 30pA
- Base Part Number: LF356
- Package / Case: 8-DIP (0.300", 7.62mm)
- Current - Supply: 5mA
- Supplier Device Package: 8-PDIP
- Part Status: Obsolete
- Amplifier Type: J-FET
- Series: BI-FET™
- Slew Rate: 12V/µs
- Voltage - Supply, Single/Dual (±): ±15V
- Voltage - Input Offset: 3mV
- Packaging: Tube
- Mounting Type: Through Hole
- Output Type: -
- detail: J-FET Amplifier 1 Circuit 8-PDIP
