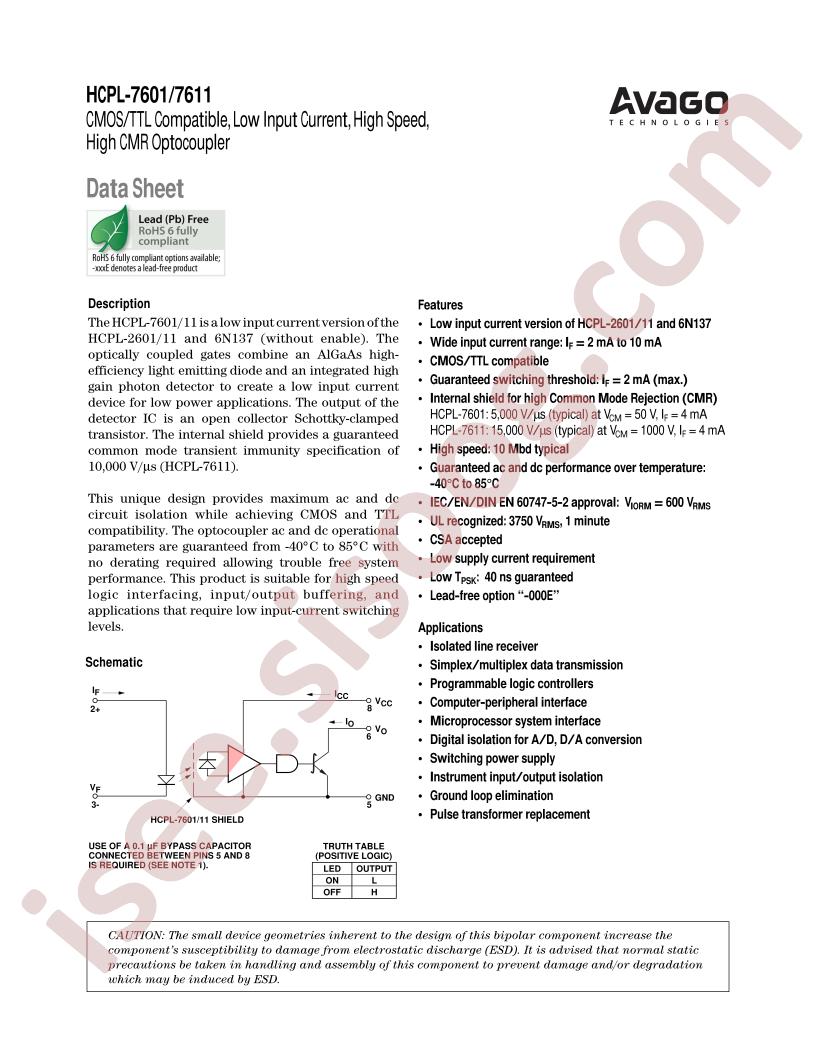

دیتاشیت HCPL-7611-500E
مشخصات دیتاشیت
| نام دیتاشیت |
HCPL-7601/11
|
| حجم فایل |
189.842
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
13
|
مشخصات
-
Manufacturer:
Broadcom Limited
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Obsolete
-
Number of Channels:
1
-
Inputs - Side 1/Side 2:
1/0
-
Voltage - Isolation:
3750Vrms
-
Common Mode Transient Immunity (Min):
10kV/µs
-
Input Type:
DC
-
Output Type:
Open Collector, Schottky Clamped
-
Current - Output / Channel:
50mA
-
Data Rate:
10MBd
-
Propagation Delay tpLH / tpHL (Max):
75ns, 75ns
-
Rise / Fall Time (Typ):
24ns, 10ns
-
Voltage - Forward (Vf) (Typ):
1.5V
-
Current - DC Forward (If) (Max):
20mA
-
Voltage - Supply:
4.5V ~ 5.5V
-
Operating Temperature:
-40°C ~ 85°C
-
Mounting Type:
Surface Mount
-
Package / Case:
8-SMD, Gull Wing
-
Supplier Device Package:
8-DIP Gull Wing
-
detail:
Logic Output Optoisolator 10MBd Open Collector, Schottky Clamped 3750Vrms 1 Channel 10kV/µs CMTI 8-DIP Gull Wing
